Product Summary

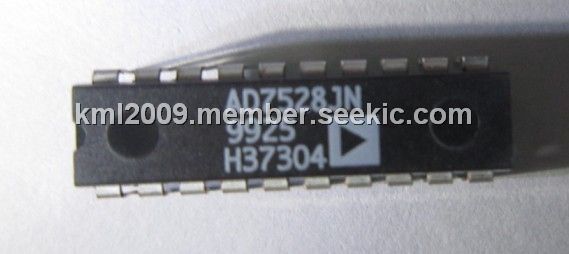

The AD7528JN is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available inskinny 0.3 wide 20-lead DIPs and in 20-lead surface mountpackages. Separate on-chip latches are provided for each DAC to alloweasy microprocessor interface. Application of the AD7528JN is the Digital Control of Gain/Attenuation, Filter Parameters, Stereo Audio Circuits and X-Y Graphics.
Parametrics
AD7528JN absolute maximum ratings: (1)VDD to AGND: 0 V, +17V; (2)VDD to DGND: 0 V, +17V; (3)AGND to DGND: VDD + 0.3V; (4)DGND to AGND: VDD + 0.3V; (5)Digital Input Voltage to DGND:–0.3 V, VDD + 0.3V; (6)VPIN2, VPIN20 to AGND:–0.3 V, VDD + 0.3V; (7)VREF A, VREF B to AGND: ±25V; (8)VRFB A, VRFB B to AGND: ±25V; (9)Power Dissipation (Any Package) to +75℃C: 450mW; (10)Derates above +75℃ by: 6 mW/℃; (11)Operating Temperature RangeCommercial (J, K, L) Grades:–40 to +85℃; (12)Industrial (A, B, C) Grades:–40 to +85℃; (13)Extended (S, T, U) Grades:–55 to +125℃; (14)Storage Temperature:–65 to +150℃; (15)Lead Temperature (Soldering, 10 secs): +300℃.
Features
AD7528JN features: (1)On-Chip Latches for Both DACs; (2)+5 V to +15 V Operation; (3)DACs Matched to 1%; (4)Four Quadrant Multiplication; (5)TTL/CMOS Compatible; (6)Latch Free (Protection Schottkys not Required).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7528JN |
|
IC DAC 8BIT DUAL MULTIPLY 20-DIP |
Data Sheet |
|
|
||||||||||||||||
|
AD7528JNZ |
|
IC DAC 8BIT DUAL MULTIPLY 20-DIP |
Data Sheet |
|
|
||||||||||||||||
