Product Summary

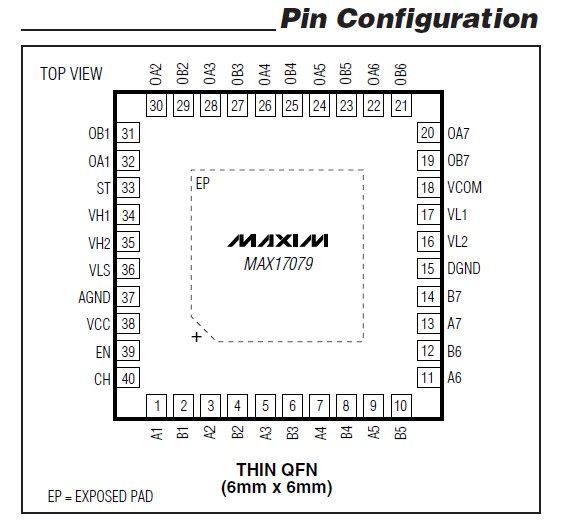

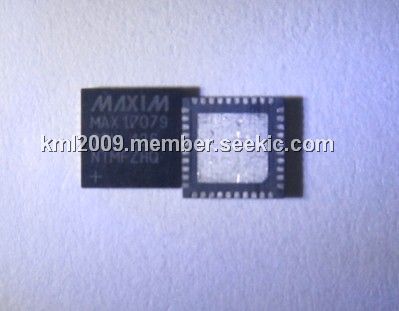

The MAX17079GTL+ is a kind of 7-channel logic-level input to highvoltage output level shifter. Each channel of MAX17079GTL+ has two inputs plus a shared enable input. Each channel has two outputs, which can be set to five output levels. Two outputs are complementary to each other. The five output levels of MAX17079GTL+ are set by five supply rails that are common to all 14 outputs. The MAX17079GTL+ is in a 40-pin, 6mm x 6mm, thin QFN package, with exposed pad and a maximum height of 0.8mm. The MAX17079GTL+ is widely used in TFT LCD panels.
Parametrics
MAX17079GTL+ absolute maximum ratings: (1)VCC to AGND: -0.3V to +7V; (2)Ax, Bx, CH, ST, EN to AGND: -0.3V to +7V; (3)DGND to AGND: -0.3V to +0.3V; (4)VLS to DGND: -0.3V to +20V; (5)VH1, VH2, VL1, VL2, VCOM to DGND: -0.3V to (VLS + 0.3V); (6)OAx, OBx to DGND: (VL1 - 0.3V) to (VH1 + 0.3V); (7)OBx, OAx RMS Current: 50mA; (8)VH1, VH2, VL1, VL2 RMS Current: 300mA; (9)VH1, VL2, VCOM, to DGND: (VL1 - 0.3V) to (VH1 + 0.3V); (10)Continuous Power Dissipation (TA = +70℃),40-Pin, 6mm x 6mm TQFN (derate 35.7mW/℃ above +70℃): 2857.1mW; (11)Operating Temperature Range: -40℃ to +105℃; (12)Junction Temperature: +150℃; (13)Storage Temperature Range: -65℃ to +150℃; (14)Lead Temperature (soldering, 10s): +300℃.
Features
MAX17079GTL+ features: (1)7-Channel Logic-Level Input to High-Voltage; (2)Output Level Shifter; (3)Complementary Outputs in Each Channel; (4)VLS Input Range from 10V to 18V; (5)VCC Input Range from 2.3V to 3.6V; (6)2-Level or 4-Level Operation; (7)Sequential or Combinational Logic; (8)3Ω Output Switches; (9)5-Level Output; (10)Short Propagation Delay (80ns typ); (11)Fast Rise Time (30ns typ); (12)Built-In Dead Time to Prevent Shoot-Through; (13)Thermal Shutdown; (14)VLS and VCC Undervoltage Lockout.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX17079GTL+ |
Maxim Integrated Products |
Translation - Voltage Levels 4 or 2 Logic - Level Shifter |
Data Sheet |
|
|
||||||||||||
|
MAX17079GTL+CAZ |
Maxim Integrated Products |
Translation - Voltage Levels Low-Noise Step-Up DC-DC Converter |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX17079GTL+T |
Maxim Integrated Products |
Translation - Voltage Levels 4 or 2 Logic - Level Shifter |
Data Sheet |
|
|
||||||||||||
|
MAX17079GTL+TW |
Maxim Integrated Products |
Translation - Voltage Levels 4 or 2 Logic - Level Shifter |
Data Sheet |
|
|
||||||||||||
|
MAX17079GTL+G0Y |
Maxim Integrated Products |
Translation - Voltage Levels |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX17079GTL+TG0Y |
Maxim Integrated Products |
Translation - Voltage Levels |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX17079GTL+W |
Maxim Integrated Products |
Translation - Voltage Levels 4 or 2 Logic - Level Shifter |
Data Sheet |
|
|
||||||||||||
