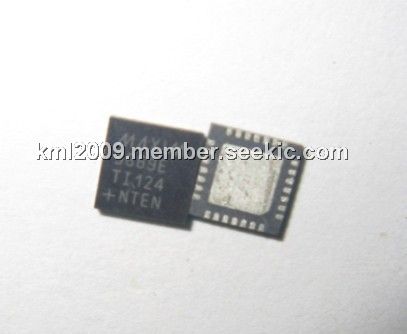

MAX9669ETI+

10-bit programmable gamma reference system, 28-TQFN, 16-Channel, 1μs, -0.3V to +22V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.63~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.63~1.00

PartNumber:: MAX9669ETI+

Brand:: Maxim Integrated Products - Maxim | Pack: QFN | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Saintly's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-25

From Other Seller

Part Number:MAX9669ETI+
US $0.63 - 1.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX9669ETI+ is a kind of 10-bit programmable gamma reference system with MTP for TFT LCDs. The MAX9669ETI+ outputs 16 voltage references for gamma correction in TFT LCDs and one voltage reference for VCOM. Each gamma reference voltage has its own 10- bit digital-to-analog converter (DAC) and buffer to ensure a table voltage. The VCOM reference voltage has its own 10-bit DAC and an amplifier to ensure a stable voltage when critical levels and patterns are displayed. The MAX9669ETI+ features integrated multiple-time programmable (MTP) memory to store gamma and VCOM values on the chip, eliminating the need for external EEPROM. The MAX9669ETI+supports up to 100 write operations to the on-chip nonvolatile memory.

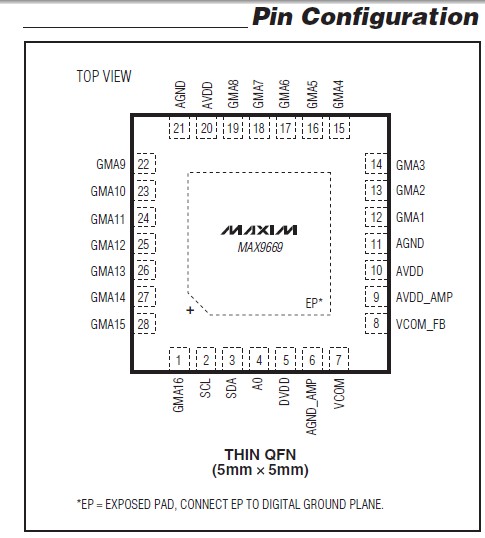

Parametrics

MAX9669ETI+ absolute maximum ratings: (1)Supply Voltages: AVDD to AGND: -0.3V to +22V; AVDD_AMP to AGND_AMP: -0.3V to +22V; AVDD to AVDD_AMP: -0.3V to +0.3V; DVDD to DGND: -0.3V to +4V; AGND_AMP, DGND to AGND: -0.1V to +0.1V; (2)Outputs: GMA1–GMA16: -0.3V to (AVDD + 0.3V); VCOM: -0.3V to (AVDD_AMP + 0.3V); (3)Inputs: SDA, SCL: -0.3V to +6V; VCOM_FB: -0.3V to (AVDD_AMP + 0.3V); SDA, SCL: ±20mA; GMA1–GMA16: ±200mA; VCOM: ±600mA; (4)Continuous Power Dissipation (TA = +70℃) 28-Pin TQFN-EP (derate 28.6mW/℃ above +70℃): 2285.7mW; (5)Operating Temperature Range: -40℃ to +85℃; (6)Junction Temperature: +150℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (soldering, 10s): +300℃; (9)Soldering Temperature (reflow): +260℃.

Features

MAX9669ETI+ features: (1)16-Channel Gamma Correction, 10-Bit Resolution; (2)VCOM Driver; (3)Integrated MTP Memory; (4)Programmable VCOM Limits; (5)200mA Peak Current on Gamma Channels; (6)600mA Peak Current on VCOM Channel; (7)1μs Settling Time.
