Product Summary

The ADS800E is a low-power, monolithic 12-bit, 40MHz Ana-log-to-Digital (A/D) converter utilizing a small geometry CMOSprocess. This complete converter includes a 12-bit quantizer,wideband track-and-hold, reference, and three-state outputs. The ADS800E operates from a single +5V power supply and can beconfigured to accept either differential or single-ended inputsignals.The ADS800E employs digital error correction to provideexcellent Nyquist differential linearity performance for de-manding imaging applications. Its low distortion, high SNR,and high oversampling capability give it the extra marginneeded for telecommunications, test instrumentation, andvideo applications. This high-performance A/D converter is specified over tem-perature for AC and DC performance at a 40MHz samplingrate. The ADS800E is available in an SO-28 package.

Parametrics

ADS800E absolute maximum ratings: (1)+VS: +6V; (2)Analog Input: 0V to (+VS + 300mV); (3)Logic Input: 0V to (+VS + 300mV); (4)Case Temperature: +100℃; (5)Junction Temperature: +150℃; (6)Storage Temperature: +125℃; (7)External Top Reference Voltage (REFT): +3.4V Max; (8)External Bottom Reference Voltage (REFB): +1.1V Min.

Features

ADS800E features: (1)low power: 390mW; (2)internal reference; (3)wideband track-and-hold: 65MHz; (4)single +5V supply.

Diagrams

ADS800E circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

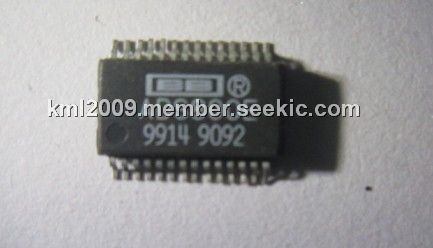

ADS800E
