Product Summary

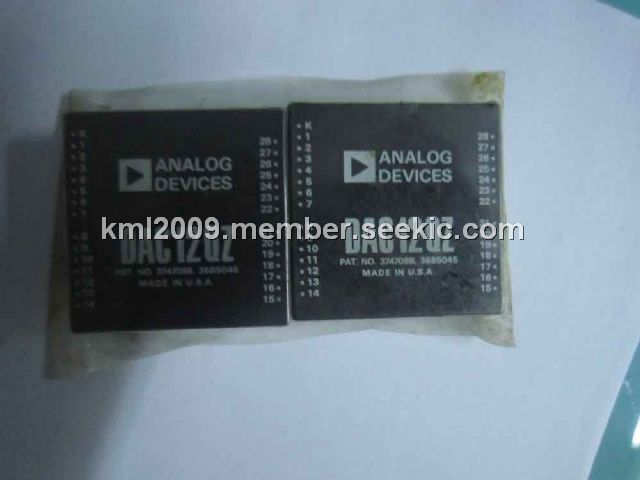

The DAC12QZ is a low cost 12-bit digital to analog converter. It is designed for general purpose OEM applications. The completely self-contained module includes weighted resistor networks, monolithic uADC current switches, temperature compensated reference and an externally programmable output amplifier.
Parametrics
Specifications: (1)resolution: 12bits; (2)output voltage range: 0 V to 5 V @ 10 mA; 0 V to 10 V @ 5 mA; 2.5 V,±5 V @ 10 mA; ±10 V @ 5 mA; (3)output impedance: 0.02 Ω; (4)operating temperature range: 0 ℃ to 70 ℃; (5)storage temperature: -55 ℃ to 125 ℃; (6)power requirement: 15 V±5 % @ 25 mA; -15 V±5 % @ 30 mA; 5 V±10 % @ 35 mA; (7)adjustment (user provided): gain(20k, 20 turn pot): ±0.3% f.s; zero(20k, 20 turn pot): ±30mv; (8)outline dimensions: 2"× 2" ×0.4".
Features
Features: (1) low cost; (2) 12-bit resolution; (3) small size: 2"× 2" ×0.4"; (4) programmable output ranges; (5) 20 ppm/% power supply rejection; (6) ±30 ppm/℃ TC; (7) 1/2 LSB linearity.

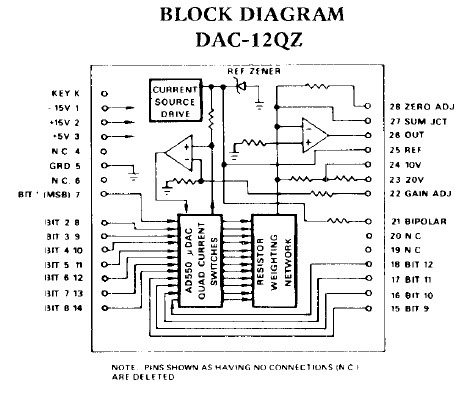

Diagrams
