Product Summary

The S5935QF is a powerful and flexible PCI controller supporting several levels of interface sophistication. It is PCI 2.1 compliant. And, since AMCC is a member of the PCI Special Interest Group, the S5935QF has been tested on various manufacturers PCI motherboards, chip sets, PCI BIOSs and operating systems. The device allows special direct data accessing between the PCI bus and the user application through implementation of four definable Pass-Thru data channels. It is widely used in high speed networking, digital video applications, i/o communications ports, high speed data input/output, multimedia communications, memory interfaces, high speed data acquisition, etc.

Parametrics

Absolute maximum ratings: (1)Storage Temperature: –55 to 125 ℃; (2)Supply Voltage (V CC): –0.3 to 7.0 Volts; (3)Input Pin Voltage: –0.5 to V CC + 5.0 Volts; (4)Power Dissipation: 1.05 Watts @33 MHz max.

Features

Features: (1)Full 132 Mbytes/sec Transfer Rate; (2)Supports new Intel 440BX/GX Chipsets; (3)Supports new WinNT Service Pack 2 & 3; (4)PCI Bus Operation DC to 33 MHz; (5)8/16/32 Bit Add-On User Bus; (6)Four Definable Pass-Thru Data Channels; (7)Two 32 Byte Internal FIFOs w/DMA; (8)Synchronous Add-On Bus Operation; (9)Mail Box Registers w/Byte Level Status; (10)Direct Mail Box Data Strobe/Interrupts; (11)Direct PCI & Add-On Interrupt Pins; (12)Optional Non-Volatile Memory Boot Loading; (13)Optional Expansion BIOS/POST Code.

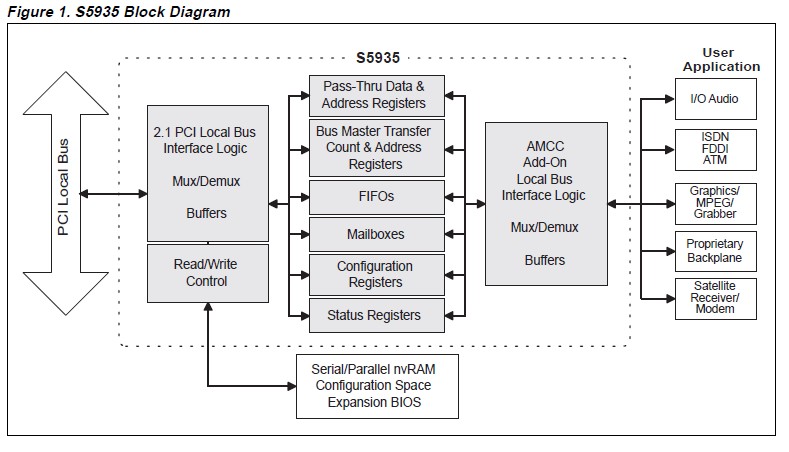

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S5935QF
S5935QF
Other

Data Sheet
Negotiable
