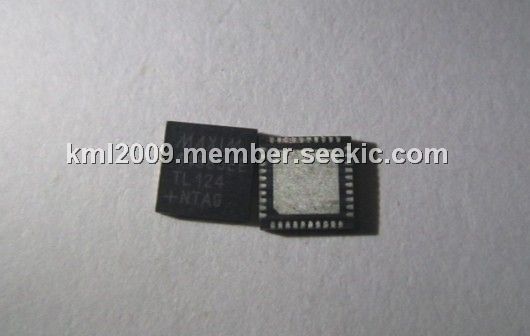

MAX14885EETL+

Product Summary

The MAX14885EETL+ is a low-capacitance VGA 2:2 dual-graphics crossover switch, which integrates high-bandwidth analog switches, level-translating buffers, and level-translating FET switches. The MAX14885EETL+ implements a complete 2:2 dual-graphics crossover solution for VGA signal switching. The MAX14885EETL+ provides 12 very high-frequency 700MHz (typ) SPST switches for RGB signals, four lowfrequency clamping switches for display data channel (DDC) signals, two pairs of level-translating buffers for the HSYNC and VSYNC signals, and integrated extended ESD protection. The MAX14885EETL+ is used to select one of two sources to either of two destinations within a laptop computer.

Parametrics

MAX14885EETL+ absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)VL: -0.3V to +6V; (3)RED_, GRN_, BLU_, SCL1, SCL2, SDA1, SDA2, SH1, SH2, SV1, SV2: -0.3V to (VCC + 0.3V); (4)SCLA, SCLB, SDAA, SDAB, SHA, SHB, SVA, SVB, S00, S01, S10, S11, EN: -0.3V to (VL + 0.3V); (5)Continuous Current Through RED_, GRN_, BLU_ Switches: ±50mA; (6)Continuous Current Through SDA_, SCL_ Switches: ±50mA; (7)Peak Current Through All Switches (pulsed at 1ms, 10% duty cycle): ±100mA; (8)Continuous Power Dissipation (Multilayer Board, TA = +70℃):; (9)40-Pin TQFN (derate 35.7mW/℃ above +70℃): 2857mW; (10)Operating Temperature Range: -40℃ to +85℃; (11)Storage Temperature Range: -65℃ to +150℃; (12)Junction Temperature: +150℃; (13)Soldering Temperature (reflow): +260℃.

Features

MAX14885EETL+ features: (1)Low Quiescent Current ≤ 5μA (max); (2)Low 5I (typ) On-Resistance (RGB Signals); (3)High Bandwidth, 700MHz (typ), RGB; (4)DDC Level Shifting, Isolation with Internal Pullup Termination, and Protection; (5)Horizontal and Vertical Sync Level Shifting and Buffering; (6)Inputs Compatible with VL, Outputs TTL Compatible; (7)Source/Sink ±10mA on Each SH_, SV_ Output; (8)Independent Selectable Logic Inputs for Switching; (9)High ESD Protection on Outputs: ±15kV ESD HBM; ±6kV IEC 61000-4-2 Contact Discharge; (10)Small, 40-Pin TQFN (5mm x 5mm) Package.

Diagrams
