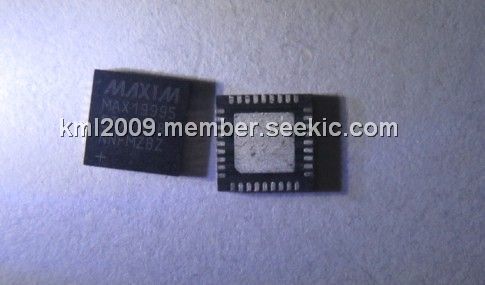

MAX19995AETX+

Product Summary

The MAX19995AETX+ dual-channel downconverter is designed to provide 8.7dB of conversion gain,+24.8dBm input IP3, +13.5dBm 1dB input compression point, and a noise figure of 9.2dB for 1700MHz to2200MHz diversity receiver applications. With an optimized LO frequency range of 1750MHz to 2700MHz, thismixer is ideal for high-side LO injection architectures. In addition to offering excellent linearity and noise per-formance, the MAX19995AETX+ also yields a high level ofcomponent integration. This device includes two double-balanced passive mixer cores, two LO buffers, a dual-input LO selectable switch, and a pair of differential IFoutput amplifiers. Integrated on-chip baluns allow for sin-gle-ended RF and LO inputs. Applications include UMTS/WCDMA Base Stations, LTE/WiMAX Base Stations, TD-SCDMA Base StationsDCS1800/PCS1900 and GSM/EDGE BaseStationscdma2000® Base Stations, Fixed Broadband Wireless Access, Wireless Local Loop, Private Mobile Radios and Military Systems.

Parametrics

MAX19995AETX+ absolute maximum ratings: (1)VCC to GND: -0.3V to +5.5V; (2)LO1, LO2 to GND: -0.3V to +0.3V; (3)LOSEL to GND: -0.3V to (VCC + 0.3V); (4)RFMAIN, RFDIV, and LO_ Input Power: +15dBm; (5)RFMAIN, RFDIV Current (RF is DC shorted to GNDthrough a balun): 50mA; (6)Continuous Power Dissipation (Note 1): 8.7W; (7)θJA (Notes 2, 3): +38℃/W; (8)θJC (Notes 1, 3): 7.4℃/W; (9)Operating Case Temperature Range (Note 4): -40℃ to +85℃; (10)Junction Temperature: +150℃; (11)Storage Temperature Range: -65℃ to +150℃; (12)Lead Temperature (soldering, 10s): +300℃.

Features

MAX19995AETX+ features: (1)1700MHz to 2200MHz RF Frequency Range; (2)1750MHz to 2700MHz LO Frequency Range; (3)50MHz to 500MHz IF Frequency Range; (4)8.7dB Typical Conversion Gain; (5)9.2dB Typical Noise Figure; (6)+24.8dBm Typical Input IP3; (7)+13.5dBm Typical Input 1dB Compression Point; (8)64dBc Typical 2LO-2RF Spurious Rejection atPRF = -10dBm; (9)Dual Channels Ideal for Diversity ReceiverApplications; (10)48dB Typical Channel-to-Channel Isolation; (11)Low -3dBm to +3dBm LO Drive; (12)Integrated LO Buffer; (13)Internal RF and LO Baluns for Single-EndedInputs; (14)Built-In SPDT LO Switch with 48dB LO-to-LOIsolation and 50ns Switching Time; (15)Single 5.0V or 3.3V Supply.

Diagrams
