Product Summary

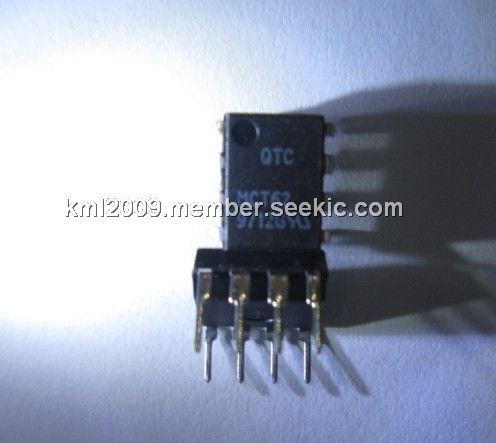

The MCT62 Optocoupler has two channels for density applications. For fourchannel applications, two-packages fit into a standard 16-pin DIP socket. Eachchannel is an NPN silicon planar phototransistor optically coupled to a galliumarsenide infrared emitting diode. Applications include AC Line/Digital Logic-isolate high voltage transients, Digital Logic/Digital Logic-Eliminate spurious grounds and Digital Logic/AC Triac Control-isolate high voltage transients and so on.
Parametrics
MCT62 absolute maximum ratings: (1)EMITTER (Each channel)Forward Current-Continuous: 60mA; (2)Forward Current - Peak: 3A; (3)Reverse Voltage: 3V; (4)DETECTOR (Each channel)Collector Current - Continuous: 30mA; (5)TOTAL DEVICEStorage Temperature: -55 to +150℃; (6)Operating Temperature: -55 to +100℃; (7)Lead Solder Temperature (wave solder): 250℃ for 10 sec.
Features
MCT62 features: (1)Two isolated channels per package; (2)Two packages fit into a 16 lead DIP socket; (3)Choice of three current transfer ratios; (4)Underwriters Laboratory (U.L.) recognized File E90700.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCT62 |
Fairchild Semiconductor |
Transistor Output Optocouplers DIP-8 DUAL PH TRANS |
Data Sheet |
|
|
||||||||||||
|
MCT62_Q |
Fairchild Semiconductor |
Transistor Output Optocouplers DIP-8 DUAL PH TRANS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MCT62H |
Vishay Semiconductors |
Transistor Output Optocouplers Phototransistor Out Dual CTR >50% |
Data Sheet |
|
|
||||||||||||
|
MCT62S |
Fairchild Semiconductor |
Transistor Output Optocouplers SO-8 DUAL PH TRAN |
Data Sheet |
|
|
||||||||||||
|
MCT62S_Q |
Fairchild Semiconductor |
Transistor Output Optocouplers SO-8 DUAL PH TRAN |
Data Sheet |
Negotiable |
|
||||||||||||
|
MCT62SD |
Fairchild Semiconductor |
Transistor Output Optocouplers 8-Pin Optocoupler Dual Ch Phototrans |
Data Sheet |
|
|
||||||||||||
|
MCT62W |
Fairchild Semiconductor |
Transistor Output Optocouplers 8-Pin Optocoupler Dual Ch Phototrans |
Data Sheet |
Negotiable |
|
||||||||||||
