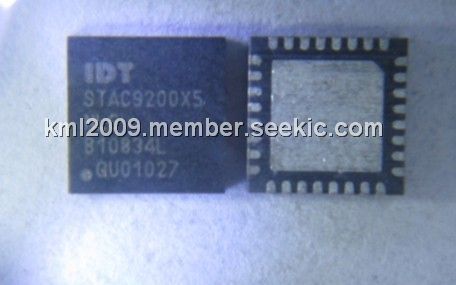

Product Summary

The STAC9200X5NLG is a high quality, 2-channel audio CODEC compatible with the Intel High Definition (HD) Audio Interface. The STAC9200X5NLG provides Stereo 24-Bit resolution with sample rates up to 192 KHz. SPDIF I/O provides connectivity to consumer electronic equipment. The STAC9200X5NLG incorporates IDT’s proprietary SD technology to achieve an estimated DAC SNR in excess of 100dB. The STAC9200X5NLG provides high quality, HD Audio capability to notebook and cost sensitive desktop PC applications.

Parametrics

STAC9200X5NLG absolute maximum ratings: (1)Analog maximum supply voltage AVdd: 6 Volts; (2)Digital maximum supply voltage DVdd: 5.5 Volts; (3)VREFOUT output current: 5 mA; (4)Voltage on any pin relative to ground Vss: - 0.3 V to Vdd + 0.3V; (5)Operating temperature: 0 to +70℃; (6)Storage temperature: -55 to +125℃; (7)Soldering temperature: 260℃.

Features

STAC9200X5NLG features: (1)High performance SD technology; (2)100dB DAC SNR; (3)Intel HD Audio Interface; (4)Two Channel DACs and ADCs with 24-bit resolution; (5)Sample rates up to 192 KHz; (6)Mixer-less design; (7)Low-latency Karaoke Mode Supported; (8)Integrated Headphone Amplifiers; (9)Stereo Microphone; (10)Supports Stereo Microphone; (11)Microphone Boost 0, 10, 20, 30, 40dB; (12)Direct CDROM Recording Mixerless Design; (13)S/PDIF In and Out ; (14)Universal JacksTM Functionality for jack retasking; (15)Adjustable VREF Out; (16)Digital PC Beep to all outputs; (17)+3.3 V, +4 V and +5 V analog power supply options; (18)32-pad QFN (5mm x 5mm) and 48-pin LQFP package options.

Diagrams

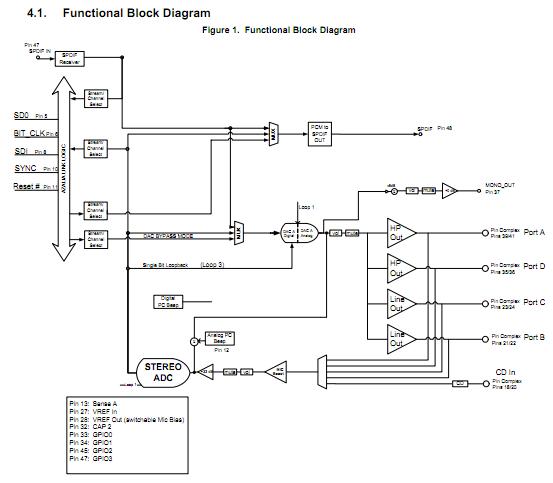

STAC9200X5NLG functional block diagram
