Product Summary
The TIC106D is a silicon controlled rectifier.
Parametrics
TIC106D absolute maximum ratings: (1)Continuous on-state current at (or below) 80℃ case temperature:5 A; (2)Average on-state current (180° conduction angle) at (or below) 80℃ case temperature:3.2 A; (3)Surge on-state current:30 A; (4)Peak positive gate current:0.2 A; (5)Peak gate power dissipation:1.3 W; (6)Average gate power dissipation:0.3 W; (7)Operating case temperature range:-40 to +110℃; (8)Storage temperature range:-40 to +125℃; (9)Lead temperature 1.6 mm from case for 10 seconds:230℃.
Features
TIC106D features: (1)5 A Continuous On-State Current; (2)30 A Surge-Current; (3)Glass Passivated Wafer; (4)400 V to 800 V Off-State Voltage; (5)Max IGT of 200 uA.

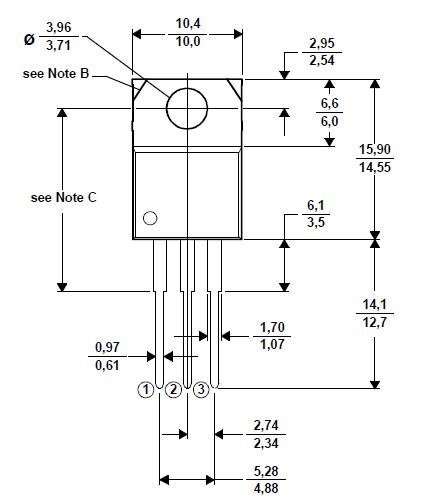

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

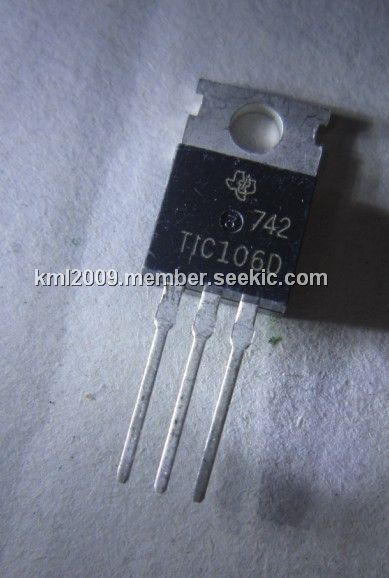

![]() TIC106D |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||
![]() |
![]() TIC106D-S |
![]() Bourns |
![]() SCRs 400V 5A SCR |
![]() Data Sheet |
![]()
|
|
