Product Summary
The AD561JD is a 10-bit digital-to-analog converter combined with a high stability voltage referencefabricated on a single monolithic chip. Using ten precision high-speed current-steering switches, a control amplifier, voltagereference, and laser-trimmed thin-film SiCr resistor network, the AD561JD produces a fast, accurate analog output current.Laser trimmed output application resistors are also included tofacilitate accurate, stable current-to-voltage conversion; they aretrimmed to 0.1% accuracy, thus eliminating external trimmersin many situations. The AD561JD also incorporates a low noise, high stability subsurface zener diode to produce a reference voltage with excellent long term stability and temperature cycle characteristics, which challenge the best discrete Zener references. A temperature compensation circuit is laser-trimmed to allowcustom correction of the temperature coefficient of each device.
Parametrics
AD561JD specifications: (1)Accurancy: 0.05lsb; (2)differential nonlinearity: 0.05lsb; (3)operating temperature range: 0 to 70; (4)storage temperature range-(D package): -65 to 150℃; (5)storage temperature range-(D package): -25 to 85℃.
Features
AD561JD features: (1)Complete Current Output Converter; (2)High Stability Buried Zener Reference; (3)Laser Trimmed to High Accuracy (1/4 LSB Max Error,AD561K, T); (4)Trimmed Output Application Resistors for 0 V to +10 V, 5 V Ranges; (5)Fast Settling – 250 ns to 1/2 LSB; (6)Guaranteed Monotonicity Over Full OperatingTemperature Range; (7)TTL/DTL and CMOS Compatible (Positive True Logic); (8)Single Chip Monolithic Construction; (9)Available in Chip Form; (10)MlL-STD-883-Compliant Versions Available.

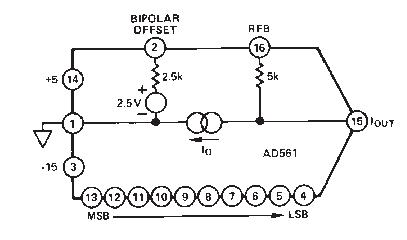

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD561JD |
|
IC DAC 10BIT 5-15V IN MONO 16DIP |
Data Sheet |
|
|
||||||||||||||||||
