MAX17010ENDLT

Internal-Switch Boost Regulator, QFN40, 1.8 V to 5.5V, 3mA, Integrated High-Voltage Level Shifter, Op Amp

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.20

PartNumber:: MAX17010ENDLT

Brand:: Maxim Integrated Products - Maxim | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Saintly's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-25

From Other Seller

Part Number:MAX17010ENDLT
US $1.00 - 1.20
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
M27C4001-10F1

US $2.00 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

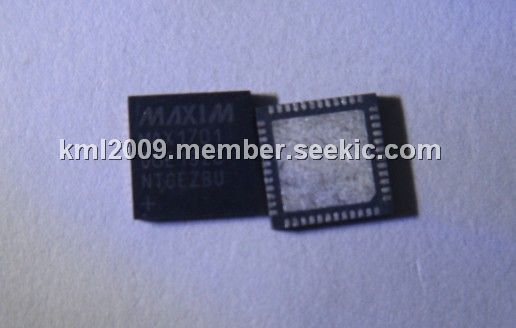

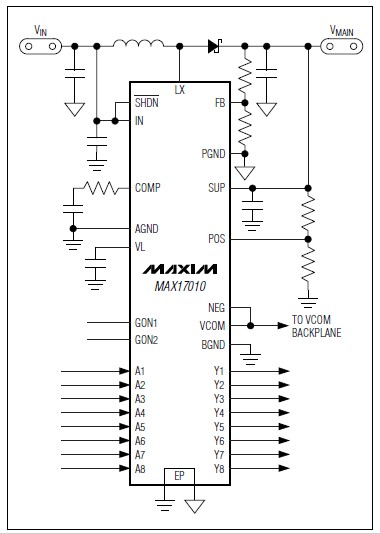

The MAX17010ENDLT is a Internal-Switch Boost Regulator with Integrated High-Voltage Level Shifter and Op Amp.The MAX17010 contains a high-performance step-up switching regulator, a high-speed operational amplifier (op amp), and a high-voltage level-shifting scan driver. The MAX17010ENDLT is optimized for thin-film transistor (TFT) liquidcrystal display (LCD) applications. The MAX17010ENDLT is available in a 40-pin thin QFN package a maximum thickness of 0.8mm for ultra-thin LCD panels. The MAX17010ENDLT is widely used in notebook computer displays and LCD monitor panels.

Parametrics

MAX17010ENDLT absolute maximum ratings: (1)IN, SHDN to GND: -0.3V to +7.5V; (2)VL to AGND: -0.3V to +6.0V; (3)COMP, FB to GND: -0.3V to (VL + 0.3V); (4)VCOM, NEG, POS to BGND: -0.3V to (VSUP + 0.3V); (5)LX to GND: -0.3V to +20V; (6)SUP to GND: -0.3V to +20V; (7)A_ to AGND: -0.3V to +20V; (8)A_ Input Current: 20mA; (9)PGND, BGND to AGND: -0.3V to +0.3V; (10)GON1, GON2 to AGND: -0.3V to +32V; (11)GOFF to AGND: -12V to + 0.3V; (12)Y1–Y6 to AGND: (VGOFF - 0.3V) to (VGON1 + 0.3V); (13)Y7, Y8 to AGND: (VGOFF - 0.3V) to (VGON2 + 0.3V); (14)LX, PGND RMS Current Rating: 2.4A; (15)Continuous Power Dissipation (TA = +70℃) NiPd Lead Frame; (16)with Nonconductive Epoxy 40-Pin, 5mm x 5mm, Thin QFN (derate 35.7mW/℃ above +70℃): 2857mW; (17)Operating Temperature Range: -40℃ to +85℃; (18)Junction Temperature: +150℃; (19)Storage Temperature Range: -65℃ to +150℃; (20)Lead Temperature (soldering, 10s): +300℃.

Features

MAX17010ENDLT features: (1)1.8 V to 5.5V IN Supply Voltage Range; (2)3mA SUP Quiescent Current (Switching); (3)1.2MHz Current-Mode Step-Up Regulator: Fast Transient Response; High-Accuracy Output Voltage (1.0%); Built-In 20V, 1.9A, 200mΩ MOSFET; High Efficiency (> 85%); Digital Soft-Start; (4)High-Speed Op Amp: 150mA Output Current; 45V/μs Slew Rate; 20MHz, -3dB Bandwidth; (5)High-Voltage Level-Shifting Scan Drivers: Logic-Level Inputs; +30V to -10V Output Rails; (6)Thermal-Overload Protection; (7)40-Pin, 5mm x 5mm, Thin QFN Package.
