Product Summary
The AD7248ABN is a 12-Bit DACPORT. The AD7248ABN is an enhanced version of the industry standard AD7245/AD7248. Improvements include operation from 12 V to 15 V supplies, a ±1/2 LSB linearity grade, faster interface times and better full scale and reference variations with VDD. Additional features of the AD7248ABN include extended temperature range operation for commercial and industrial grades.
Parametrics
AD7248ABN absolute maximum ratings: (1)VDD to AGND: –0.3 V to +17 V; (2)VDD to DGND: –0.3 V to +17 V; (3)VDD to VSS:–0.3 V to +34 V; (4)AGND to DGND: –0.3 V, VDD; (5)Digital Input Voltage to DGND: –0.3 V, VDD +0.3 V; (6)VOUT to AGND2: VSS, VDD; (7)VOUT to VSS2: 0 V, +24 V; (8)VOUT to VDD2: –32 V, 0 V; (9)REF OUT2 to AGND: 0 V, VDD; (10)Power Dissipation (Any Package) to +75℃: 450 mW; Derates above +75℃ by: 6 mW/℃; (11)Operating Temperature Commercial (A, B Versions): –40 to +85℃; (12)Extended (S Version): –55 to +125℃; (13)Storage Temperature: –65 to +150℃; (14)Lead Temperature (Soldering, 10 secs): +300℃.
Features

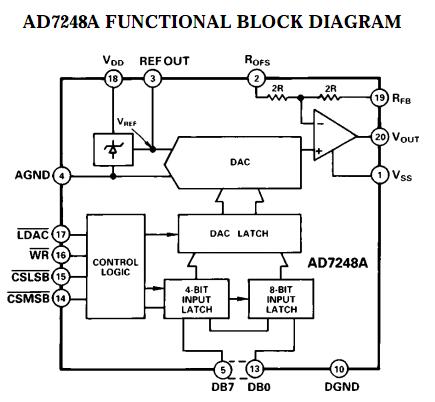

AD7248ABN features: (1)12-Bit CMOS DAC with Output Amplifier and Reference; (2)Improved AD7245/AD7248: 12 V to 15 V Operation; 61/2 LSB Linearity Grade; Faster Interface–30 ns typ Data Setup Time; (3)Extended Plastic Temperature Range (–408C to +858C); (4)Single or Dual Supply Operation; (5)Low Power–65 mW typ in Single Supply; (6)(8+4) Loading Structure: AD7248A.
