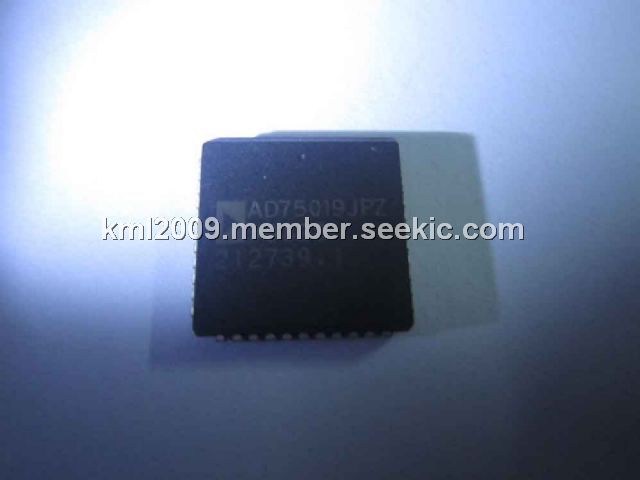

Product Summary
The AD75019JP contains 256 analog switches in a 16× 16 array. Any of the X or Y pins may serve as an input or output. Any or all of the X terminals may be programmed to connect to any or all of the Y terminals. The switches can accommodate signals with amplitudes up to the supply rails and have a typical onresistance of 150 Ω.
Parametrics
Absolute maximum ratings: (1)VDD to DGND: –0.5 to +25.2 V; (2)VSS to DGND: –25.2 to +0.5 V; (3)VCC to DGND: –0.5 to +7.0 V; (4)VDD to VSS: –0.5 to +25.2 V; (5)VCC to VSS: –0.5 to +25.2 V; (6)Digital Inputs to DGND: –0.3 to VCC + 0.5 V; (7)Power Dissipation: 1.0 W max at TA ≤75℃; (8)Operating Temperature Range: 0 to +70 ℃; (9)Storage Temperature: –65 to +150 ℃; (10)Lead Temperature: +300 ℃ max at Soldering, 10 sec.
Features
Features: (1)256 Switches in a 16×16 Array; (2)Wide Signal Range: to Supply Rails of 24 V or ±12 V; (3)Low On-Resistance: 200 Ω Typ; (4)TTL/CMOS/Microprocessor-Compatible Control Lines; (5)Serial Input Simplifies Interface; (6)Serial Output Allows Cascading for More Channels; (7)Low Power Consumption: 2 mW Quiescent; (8)Compact 44-Lead PLCC

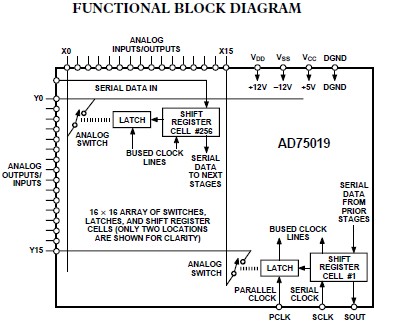

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD75019JP |
|
IC CROSSPOINT SWIT 16X16 44PLCC |
Data Sheet |
|
|
||||||||||||||||
|
AD75019JPZ |
|
IC CROSSPOINT SWIT 16X16 44PLCC |
Data Sheet |
|
|
||||||||||||||||
