Product Summary

The MAX9673ETI+ is a kind of 10-Bit, Programmable Gamma Reference System with MTP for TFT LCDs. Each gamma reference voltage has its own 10-bit DAC and buffer toensure a stable voltage. The VCOM reference voltage its own 10-bit DAC and an amplifier to ensure a stable voltage when critical levels and patterns are displayed.The MAX9673ETI+ features integrated multiple-time programmable (MTP) memory to store gamma and VCOM values on the chip, eliminating the need for external EEPROM. The MAX9673ETI+ supports up to 300 write operations to the on-chip nonvolatile memory.

Parametrics

MAX9673ETI+ absolute maximum ratings: (1)Supply Voltages: AVDD, REF to GND: -0.3V to +22V; AVDD_AMP to AGND_AMP: -0.3V to +22V; AVDD to AVDD_AMP: -0.3V to +0.3V; DVDD to GND: -0.3V to +4V; AGND_AMP to GND: -0.1V to +0.1V; (2)Outputs: GMA1–GMA16: -0.3V to (VAVDD + 0.3V); VCOM: -0.3V to (VAVDD_AMP + 0.3V); (3)Inputs: SDA, SCL: -0.3V to +6V; VCOM_FB: -0.3V to (VAVDD_AMP + 0.3V); (4)SDA, SCL: ±20mA; (5)GMA1–GMA16: ±200mA; (6)VCOM: ±600mA; (7)Continuous Power Dissipation (TA = +70℃) 28-Pin TQFN-EP (derate 28.6mW/℃ above +70℃): 2285.7mW; (8)Operating Temperature Range: -40℃ to +85℃; (9)Junction Temperature: +150℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Lead Temperature (soldering, 10s): +300℃; (12)Soldering Temperature (reflow): +260℃.

Features

MAX9673ETI+ features: (1)DAC Reference Input; (2)14-Channel Gamma Correction, 10-Bit Resolution; (3)VCOM Driver; (4)Integrated MTP Memory; (5)Programmable VCOM Limits; (6)200mA Peak Current on Gamma Channels; (7)600mA Peak Current on VCOM Channel.

Diagrams

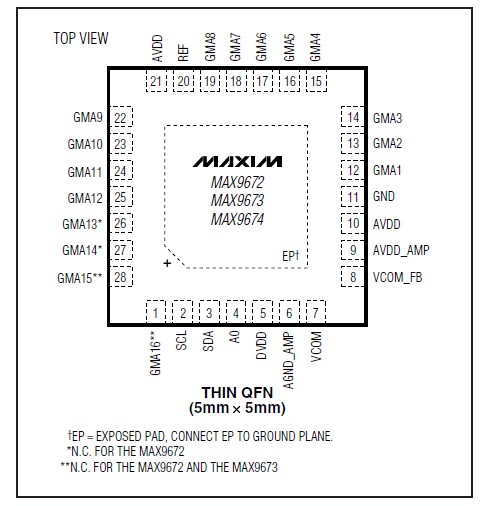

MAX9673ETI+ pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX9673ETI+
MAX9673ETI+
Maxim Integrated Products
LCD Gamma Buffers 10-Bit Prog Gamma Reference System
Data Sheet
0-1: $2.29
1-25: $1.52
25-50: $1.13
50-100: $1.09
MAX9673ETI+T
MAX9673ETI+T
Maxim Integrated Products
LCD Gamma Buffers 10-Bit Prog Gamma Reference System
Data Sheet
0-2090: $0.97
2090-2500: $0.97
