Product Summary
The AD7541AKP is a low cost, high performance 12-bit monolithic multiplying digital-to-analog converter. The AD7541AKP is fabricated using advanced, low noise, thin film on CMOS technology and is available in a standard 18-lead DIP and in 20-terminal surface mount packages. The AD7541AKP is functionally and pin compatible with the industry standard AD7541 device and offers improved specifications and performance.
Parametrics
AD7541AKP absolute maximum ratings: (1)VDD to GND:+17 V; (2)VREF to GND:±25 V; (3)VRFB to GND:±25 V; (4)Digital Input Voltage to GND:–0.3 V, VDD + 0.3 V; (5)OUT 1, OUT 2 to GND:–0.3 V, VDD + 0.3 V; (6)Power Dissipation (Any Package): To +75℃:450 mW, Derates above +75℃:6 mW/℃; (7)Operating Temperature Range:0℃ to +70℃; (8)Storage Temperature:–65℃ to +150℃; (9)Lead Temperature (Soldering, 10 secs):+300℃.
Features
AD7541AKP features: (1)Improved Version of AD7541; (2)Full Four-Quadrant Multiplication; (3)12-Bit Linearity (Endpoint); (4)All Parts Guaranteed Monotonic; (5)TTL/CMOS Compatible; (6)Low Cost; (7)Protection Schottky Diodes Not Required; (8)Low Logic Input Leakage.

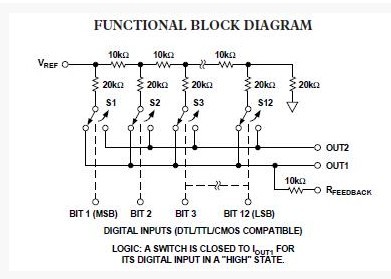

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7541AKP |
Analog Devices Inc |
IC DAC 12BIT MULT MONO 20-PLCC |
Data Sheet |
|
|
||||||
 |
AD7541AKP-REEL |
|
IC DAC 12BIT MULT MONO 20-PLCC |
Data Sheet |
Negotiable |
|
||||||
|
AD7541AKPZ |
|
IC DAC 12BIT MULT MONO 20PLCC |
Data Sheet |
|
|
||||||
|
AD7541AKPZ-REEL |
|
IC DAC 12BIT MULT MONO 20PLCC |
Data Sheet |
|
|
||||||
