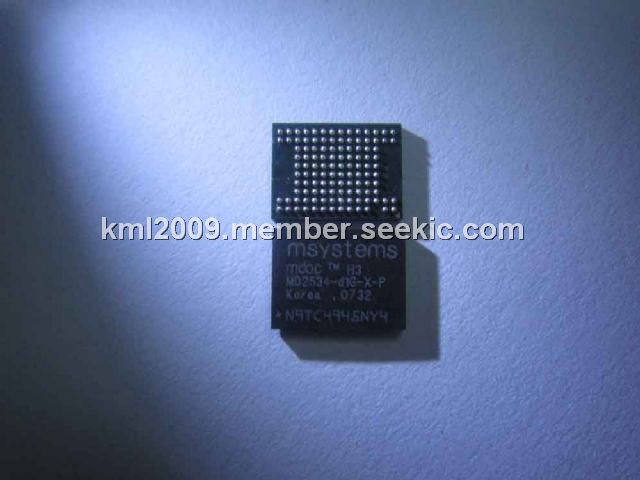

Product Summary

The MD2534-D1G-X-P is a member of mDOC H3, which is the latest addition to msystems mDOC product family. mDOC H3, packed in a small FBGA package and offering densities ranging from 1Gb (128MB) to 16Gb (2GB), is a hybrid device with an embedded thin flash controller and high capacity flash memory. It uses the most advanced Flash technologies, enhanced by msystems proprietary TrueFFS embedded flash management software. All mDOC H3 devices are ball to ball compatible. The replacement of one mDOC H3 device with another of a newer generation requires virtually no changes to the host. This makes mDOC H3 the perfect solution for platforms and reference designs, as it allows for the utilization of more advanced NAND Flash technology and new mDOC functionality with minimal integration efforts.

Parametrics

Absolute maximum ratings: (1)1.8V DC supply voltage, VCC1: -0.3 to 2V; (2)3.3V DC supply voltage, VCC: -0.3 to 4V; (3)Input pin voltage, Vin: -0.3 to 3.6V; (4)Ambient Temperature, OTR: -40 to 85℃; (5)Storage temperature, Tstg: -55 to +150℃.

Features

Features: (1)Memory Type: FLASH - Nand; (2)Memory Size: 1G (128M x 8); (3)Speed: Interface Parallel; (4)Package / Case: 115-TFBGA; (5)Packaging: Tray; (6)Voltage - Supply: 1.65V to 1.95V, 2.5V to 3.6V; (7)Operating Temperature: -40℃ to 85℃; (8)Format - Memory: FLASH; (9)Lead Free Status: Lead Free; (10)RoHS Status: RoHS Compliant.

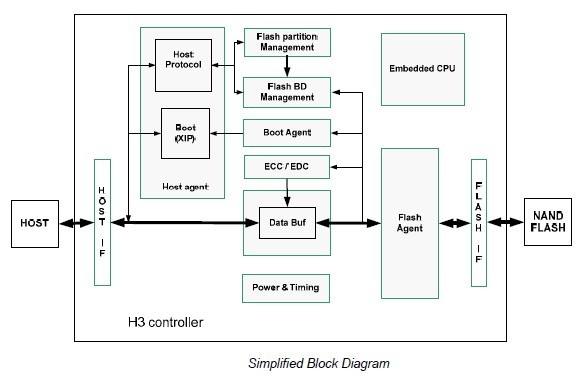

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MD2534-D1G-X-P
MD2534-D1G-X-P


IC MDOC H3 1GB FBGA

Data Sheet

Negotiable
MD2534-D1G-X-P/Y
MD2534-D1G-X-P/Y


IC MDOC H3 1GB 115-BGA

Data Sheet

Negotiable
