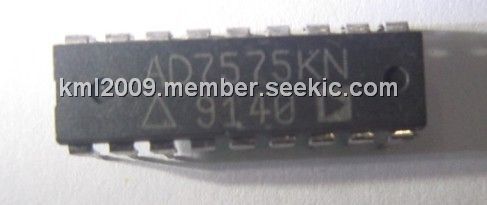

Product Summary
The AD7575KN is a high speed 8-bit ADC with a built-in track/hold function. The successive approximation conversion technique is used to achieve a fast conversion time of 5 ms, while the built-in track/hold allows full-scale signals up to 50 kHz (386 mV/ms slew rate) to be digitized.
Parametrics
AD7575KN absolute maximum ratings: (1)VDD to AGND: –0.3 V, +7 V; (2)VDD to DGND: –0.3 V, +7 V; (3)AGND to DGND: –0.3 V, VDD; (4)Digital Input Voltage to DGND: –0.3 V, VDD + 0.3 V; (5)Digital Output Voltage to DGND: –0.3 V, VDD + 0.3 V; (6)CLK Input Voltage to DGND: –0.3 V, VDD + 0.3 V; (7)VREF to AGND: –0.3 V, VDD; (8)AIN to AGND: –0.3 V, VDD; (9)Storage Temperature Range: –65℃ to +150℃; (10)Lead Temperature (Soldering, 10 sec): +300℃; (11)Power Dissipation (Any Package) to +75℃: 450 mW; (12)Derates above +75℃ by: 6 mW/℃.
Features
AD7575KN features: (1)Fast Conversion Time: 5μs; (2)On-Chip Track/Hold; (3)Low Total Unadjusted Error: 1 LSB; (4)Full Power Signal Bandwidth: 50 kHz; (5)Single +5 V Supply; (6)100 ns Data Access Time; (7)Low Power (15 mW typ); (8)Low Cost; (9)Standard 18-Lead DlPs or 20-Terminal; (10)Surface Mount Packages.

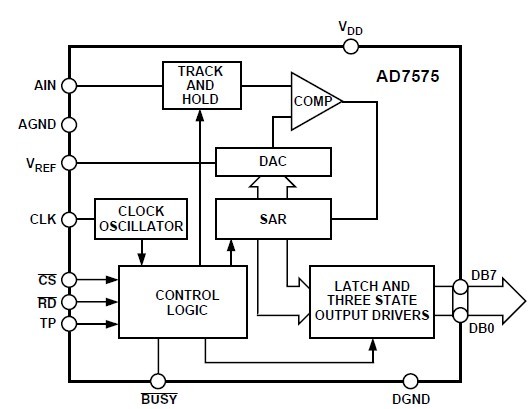

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7575KN |
Analog Devices Inc |
IC ADC 8BIT LC2MOS W/HOLD 18-DIP |
Data Sheet |
Negotiable |
|
||||||||||||||||
 |
AD7575KNZ |
|
IC ADC 8BIT LC2MOS W/HOLD 18DIP |
Data Sheet |
|
|
||||||||||||||||
