Product Summary

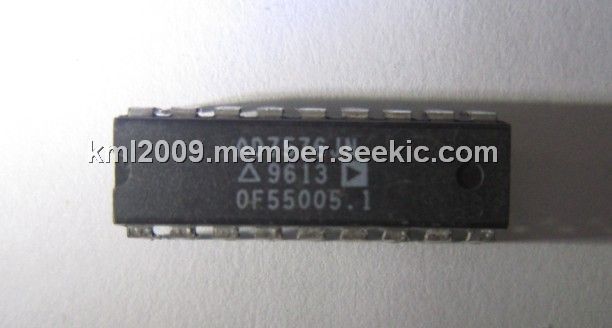

The AD7576JN is a low cost, low power, microprocessor compatible 8-bit analog-to-digital converter, which uses the successive approximation technique to achieve a fast conversion time of 10μs. The AD7576JN is designed to operate with an external reference of +1.23V and converts input signals from 0V to 2VREF. The AD7576JN is designed for single +5V operation, has on-board comparator, interface logic, and internal/external clock option. The device is fabricated in an advanced, all ion-implanted high speed linear compatible CMOS process and is packaged in a small, 0.3" wide, 18-pin DIP.
Parametrics
AD7576JN absolute maximum ratings: (1)VDD to AGND: -0.3V, +7V; (2)VDD to DGND:-0.3V, +7V; (3)AGND to DGND:-0.3V, VDD; (4)Digital input voltage to DGND(pins 1-3):-0.3V, VDD; (5)Digital input voltage to DGND(pins 4, 6-8, 10-14):-0.3V, VDD; (6)CLK input voltage to DGND:-0.3V, VDD; (7)VREF to AGND:-0.3V, VDD; (8)AIN to AGND:-0.3V, VDD; (9)Operating temperature range:0℃ to 70℃; (10)storage temperature range:-65℃ to +150℃; (11)lead temperature(soldering, 10sec):300℃; (12)power dissipation to +75℃:450mW; (13)derates above 75℃ by:6mW/℃.
Features
AD7576JN features: (1)single +5V operation with external positive reference; (2)fast conversion time:10μs; (3)no missed codes over full temperature range; (4)microprocessor compatible; (5)low cost; (6)low power(15mW); (7)100ns data access time.

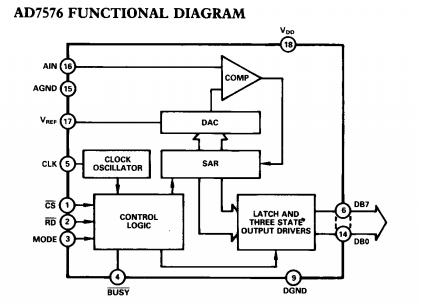

Diagrams
 |
