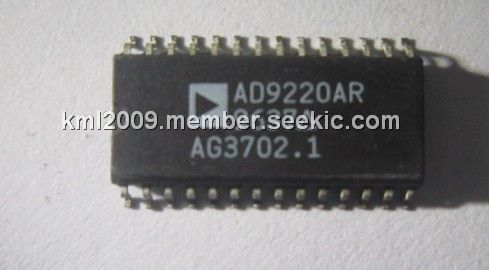

AD9220AR

AD9220AR, analog-to-digital converter, SOP28, –0.3 V, +6.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.00

PartNumber:: AD9220AR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Saintly's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-04

From Other Seller

Part Number:AD9220AR
US $1.50 - 2.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD9220AR is a high performance, single supply 12-bit analog-to-digital converter. The device exhibits true 12-bit linearity and temperature drift performance1 as well as 11.5-bit or better ac performance. It shares the same interface options, package, and pinout. Thus, the AD9220ARS provides an upward or downward component selection path based on performance, sample rate and power. The device differs with respect to their specified sampling rate, and power consumption, which is reflected in their dynamic performance over frequency.

Parametrics

AD9220AR absolute maximum ratings: (1)AVDD AVSS: min=–0.3 V, max=+6.5 V; (2)DVDD DVSS: min=–0.3 V, max=+6.5 V; (3)AVSS DVSS: min=–0.3 V, max=+0.3 V; (4)AVDD DVDD: min=–6.5 V, max=+6.5 V; (5)REFCOM AVSS: min=–0.3 V, max=+0.3 V; (6)CLK AVSS: min=–0.3 V, max=AVDD + 0.3 V; (7)Digital Outputs DVSS: min=–0.3 V, max=AVDD + 0.3 V; (8)VINA, VINB AVSS: min=–0.3 V, max=AVDD + 0.3 V; (9)VREF AVSS: min=–0.3 V, max=AVDD + 0.3 V; (10)SENSE AVSS: min=–0.3 V, max=AVDD + 0.3 V; (11)CAPB, CAPT AVSS: min=–0.3 V, max=AVDD + 0.3 V; (12)Junction Temperature: max=150 ℃; (13)Storage Temperature: min=–65 ℃, max=+150 ℃; (14)Lead Temperature(10 sec): max=300 ℃.

Features

AD9220AR features: (1)Monolithic 12-Bit A/D Converter Product Family; (2)Flexible Sampling Rates: 1.5 MSPS, 3.0 MSPS, and 10.0 MSPS; (3)Low Power Dissipation: 59 mW, 100 mW, and 250 mW; (4)Single 5 V Supply; (5)Integral Nonlinearity Error: 0.5 LSB; (6)Differential Nonlinearity Error: 0.3 LSB; (7)Input Referred Noise: 0.09 LSB; (8)Complete On-Chip Sample-and-Hold Amplifier and Voltage Reference; (9)Signal-to-Noise and Distortion Ratio: 70 dB; (10)Spurious-Free Dynamic Range: 86 dB.
