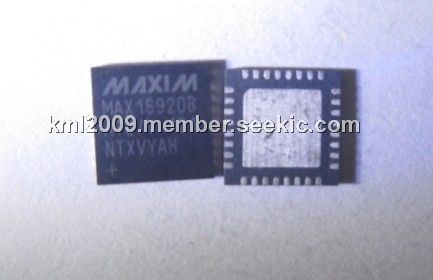

MAX16920BATJ/V+

Product Summary

The MAX16920BATJ/V+ is a kind of power-management IC which integrates three high-voltage step-down DC-DC converters, one high-voltage linear regulator, and an overvoltage protection block.The MAX16920BATJ/V+ is designed to operate with input voltages between 5.5V to 28V and survive voltage transients to 45V, making it ideal forautomotive applications.The MAX16920BATJ/V+ includes power-good outputs (PG_) for DC-DC2, DC-DC3, LDOA, and a power-on reset (POR) for DC-DC1. The MAX16920BATJ/V+ is widely used in automotive radios and automotive navigation systems.

Parametrics

MAX16920BATJ/V+ absolute maximum ratings: (1)OUT1, OUT2, FB1, FB2, FB3, POR, PG2, PG3, PGA, OT to GND: -0.3V to +6V; (2)UVO, EN2, EN3, ENA, OUTA, SYNC, VL to GND: -0.3V to +6V; (3)UVI, UVS to GND: -0.3V to +20V; (4)UVI, UVS Input Current: ±10mA; (5)OUT3 to GND: -0.3V to +10V; (6)VINA, VINB, ODRV, LX1, LX2, LX3 to GND (500ms): -0.3V to +45V; (7)VINA to VINB: -2V to +18V; (8)BST1, BST2, BST3 to PGND_ (500ms): -0.3V to +50V; (9)Continuous Power Dissipation (TA = +70℃) TQFN (derate 37mW/℃ above +70℃): 2963mW; (10)Operating Temperature Range: -40℃ to +125℃; (11)Junction Temperature: +150℃; (12)Storage Temperature Range: -65℃ to +150℃; (13)Lead Temperature (soldering, 10s): +300℃; (14)Soldering Temperature (reflow): +260℃.

Features

MAX16920BATJ/V+ features: (1)5.5V to 28V Wide Operating Voltage Range; (2)Tolerates Input Voltage Transients Up to 45V; (3)Three High-Voltage Buck Converters with High Efficiency; (4)DC-DC1: 150mA (max), Always-On, Ultra-Low Quiescent Current (25μA)_3.3V Fixed or Adjustable from 1.22V to 5V; (5)DC-DC2: 600mA (max), 5.0V Fixed or Adjustable Output Voltage from 1.22V to 5V; (6)DC-DC3: 1.5A (max), 3.3V Fixed or Adjustable from 1.22V to 8.0V; (7)One High-Voltage 5V Linear Regulator (150mA); (8)pMODriver Output with Fixed Overvoltage Shutdown; (9)400kHz (MAX16920A) or 2MHz (MAX16920B) Switching Frequency; (10)Frequency Synchronization Input; (11)Open-Drain Power-Good Outputs for DC-DC2, DC-DC3, LDOA, and Power-On Reset for DC-DC1; (12)Enable Inputs for DC-DC2, DC-DC3, and LDO; (13)Internal Soft-Start; (14)±2% Undervoltage Comparator; (15)Overtemperature Shutdown; (16)-40℃ to +125℃ Operating Temperature Range; (17)Compact 32-Pin TQFN Package (7mm x 7mm).

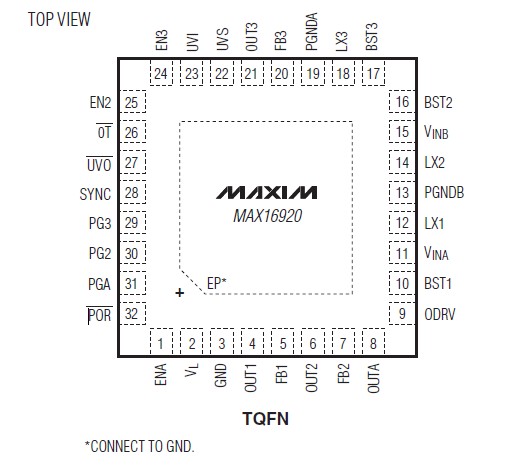

Diagrams
