Product Summary

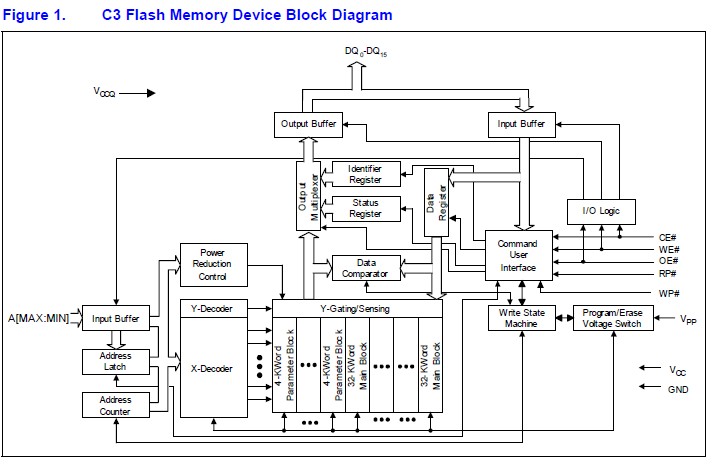

The JS28F160C3BD70 IntelAdvanced+ Boot Block Flash Memory (C3) device provides high-performance asynchronous reads in package compatible densities with a 16 bit data bus. The device supports read-array mode operations at various I/O voltages (1.8 V and 3 V) and erase and program operations at 3 V or 12 V VPP. It features a 128-bit protection register enabling security techniques and data protection schemes through a combination of factory-programmed and user-programmable OTP data registers.

Parametrics

Absolute maximum ratings: (1)Extended Operating Temperature: During Read: –40 ℃ to +85 ℃; During Block Erase and Program: –40 ℃ to +85 ℃; (2)Temperature under Bias: –40 ℃ to +85 ℃; (3)Storage Temperature: –65 ℃ to +125 ℃; (4)Voltage On Any Pin (except VCC and VPP) with Respect to GND: –0.5 V to +3.7 V ; (5)VPP Voltage (for Block Erase and Program) with Respect to GND: –0.5 V to +13.5 V ; (6)VCC and VCCQ Supply Voltage with Respect to GND: –0.2 V to +3.6 V; (7)Output Short Circuit Current: 100 mA.

Features

Features: (1)Flexible SmartVoltage Technology: 2.7 V– 3.6 V read/program/erase; 12 V for fast production programming; (2)1.65 V to 2.5 V or 2.7 V to 3.6 V I/O Option: Reduces overall system power; (3)High Performance: 2.7 V– 3.6 V: 70 ns max access time; (4)Optimized Architecture for Code Plus Data Storage: Eight 4 Kword blocks, top or bottom parameter boot; Up to 127 x 32 Kword blocks; Fast program suspend capability; Fast erase suspend capability; (5)Flexible Block Locking: Lock/unlock any block; Full protection on power-up; Write Protect (WP#) pin for hardware block protection; (6)Low Power Consumption: 9 mA typical read; 7 uA typical standby with Automatic Power Savings feature; (7)Extended Temperature Operation: -40 ℃ to +85 ℃; (8)128-bit Protection Register: 64 bit unique device identifier; 64 bit user programmable OTP cells; (9)Extended Cycling Capability: Minimum 100,000 block erase cycles.
