Product Summary

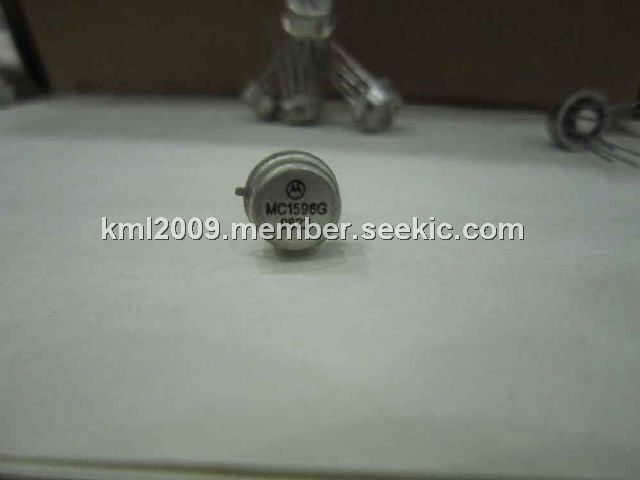

The MC1596G is a monolithic double-balanced modulator/demodulator designed for use where the output voltage is product of an input voltage(signal) and a switched function(carrier). The MC1596G is intended for suppressed carrier and amplitude modulation, synchronous detection, FM detection and son.
Parametrics
Absolute maximum ratings: (1)applied voltage: 30v; (2)V8-V10, differential input signal: ±5 v; (3)V4-V1, differential input signal: (5±I5 Re)V; (4)V2-V1, V3-V4, input signal: 5v; (5)I5, bias current: 10 mA; (6)PD, maximum power dissipation, TA=25℃: F package: 1190 mW; N package: 1420 mW; (7)TA, operating temperature range: -55 to +125 ℃; (8)TSTG, storage temperature range: -65 to +150 ℃.
Features
Features: (1)excellent carrier suppression: 65dB typ @0.5MHZ; 50dB typ @ 10MHZ; (2)adjustable gain and signal handing; (3)balanced inputs and outputs; (4)high common-mode rejection-85dB typ.

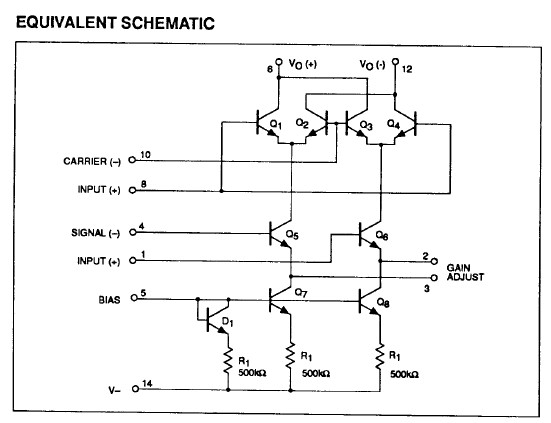

Diagrams
 |
