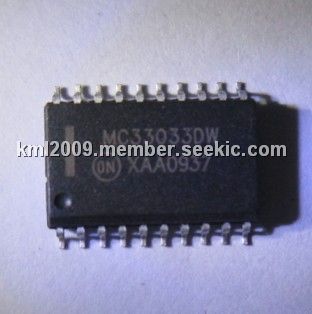

MC33033DW

Product Summary

The MC33033DW is a high performance second generation, limited feature, monolithic brushless dc motor controller. The MC33033DW contains all of the active functions required for the implementation of open loop, three or four phase motor control. The MC33033DW consists of a rotor position decoder for proper commutation sequencing, temperature compensated reference capable of supplying sensor power, frequency programmable sawtooth oscillator, fully accessible error amplifier, pulse width modulator comparator, three open collector top drivers, and three high current totem pole bottom drivers ideally suited for driving power MOSFETs. Unlike its predessors, the MC33033DW does not feature separate drive circuit supply and ground pins, brake input, or fault output signal.

Parametrics

MC33033DW absolute maximum ratings: (1)Power Supply Voltage, VCC: 30 V; (2)Digital Inputs (Pins 3, 4, 5, 6, 18, 19): Vref; (3)Oscillator Input Current (Source or Sink), IOSC: 30 mA; (4)Error Amp Input Voltage Range (Pins 9, 10), VIR: –0.3 to Vref; (5)Error Amp Output Current (Source or Sink), IOut: 10 mA; (6)Current Sense Input Voltage Range, VSense: –0.3 to 5.0 V; (7)Top Drive Voltage (Pins 1, 2, 20), VCE(top): 40 V; (8)Top Drive Sink Current (Pins 1, 2, 20), ISink(top): 50 mA; (9)Bottom Drive Output Current (Source or Sink, Pins 15,16, 17), IDRV: 100 mA; (10)Operating Junction Temperature, TJ: 150℃; (11)Operating Ambient Temperature Range, TA: –40 to +85℃; (12)Storage Temperature Range, Tstg: –65 to +150℃.

Features

MC33033DW features: (1)10 to 30 V Operation; (2)Undervoltage Lockout; (3)6.25 V Reference Capable of Supplying Sensor Power; (4)Fully Accessible Error Amplifier for Closed Loop Servo Applications; (5)High Current Drivers Can Control External 3-phase MOSFET Bridge; (6)Cycle-by-cycle Current Limiting; (7)Internal Thermal Shutdown; (8)Selectable 60°300°or 120°240°Sensor Phasings; (9)Also Efficiently Control Brush DC Motors with External MOSFET H-bridge.

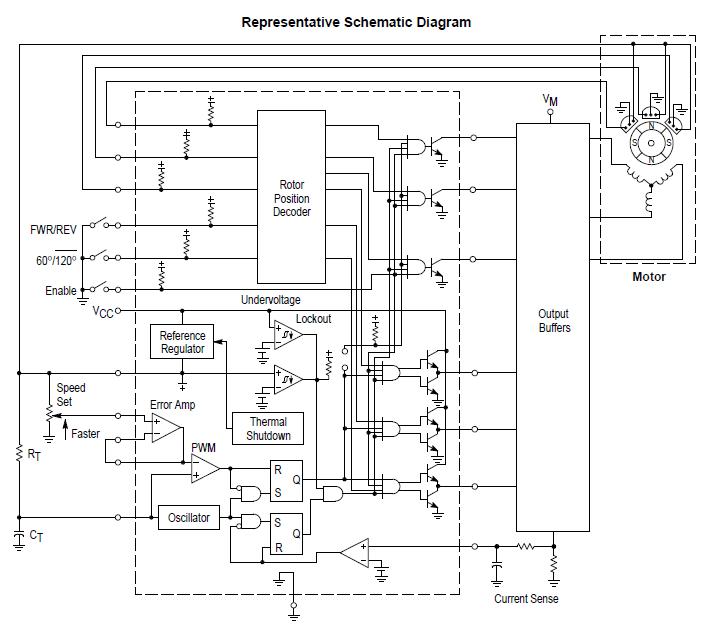

Diagrams
