Product Summary

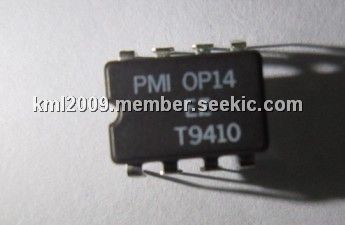

The OP14EZ is a dual general-purpose operational amplifier. It provides significant improvements over industry standard 747 and 1458/1558 types while maintaining pin-for-pin compatibility, ease of application, and low cost.

Parametrics

OP14EZ absolute maximum ratings: (1)supply votlage: ±22V; (2)differential input voltage: ±30V; (3)input voltage: supply votlage; (4)storage temperature range: -65 to 150℃; (5)lead tempeature range: 300℃; (6)operating temperature range: -55 to 125℃; (7)junction temperature, Tj: -65 to 150℃.

Features

OP14EZ features: (1)excellent DC input specifications; (2)matched VOS and CMRR; (3)OP-14 fits standard 1458/1558 sockets; (4)internally compensated; (5)low noise; (6)low drift; (7)low cost; (8)sillicon nitride passivation; (9)available in die form.

Diagrams

OP14EZ simplified schematic diagram
