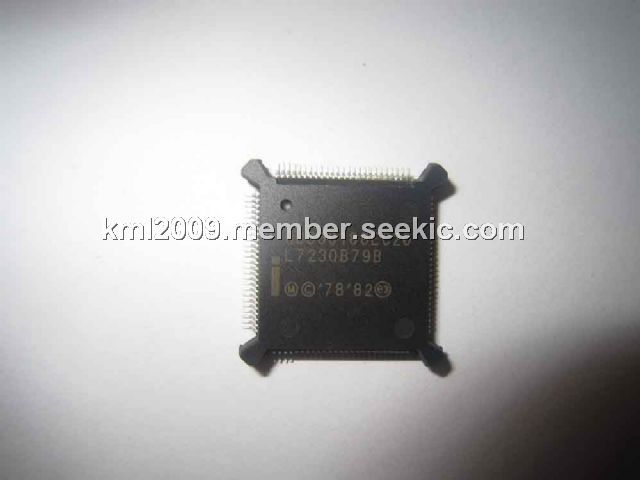

QU80C188EC20

Product Summary

The QU80C188EC20 is one of the highest integration members of the 186 Integrated Processor Family. Two serial ports are provided for services such as interprocessor communication, diagnostics and modem interfacing. Four DMA channels allow for high speed data movement as well as support of the onboard serial ports. A flexible chip select unit simplifies memory and peripheral interfacing. The three general purpose timer/counters can be used for a variety of time measurement and waveform generation tasks. A watchdog timer is provided to insure system integrity even in the most hostile of environments. Two 8259A compatible interrupt controllers handle internal interrupts, and, up to 57 external interrupt requests. A DRAM refresh unit and 24 multiplexed I/O ports round out the feature set of the QU80C188EC20.

Parametrics

Absolute Maximum Ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Case Temperature Under, Bias: -65℃ to +100℃; (3)Supply Voltage with Respect to VSS: -0.5V to +6.5V; (4)Voltage on Other Pins with Respect to VSS: -0.5V to VCC+0.5V.

Features

Features: (1)Low-Power, Static, Enhanced 8086 CPU Core; (2)Two Independent DMA Supported UARTs, each with an Integral Baud Rate Generator; (3)Four Independent DMA Channels; (4)22 Multiplexed I/O Port Pins; (5)Two 8259A Compatible Programmable Interrupt Controllers; (6)Three Programmable 16-Bit Timer/Counters; (7)32-Bit Watchdog Timer; (8)Ten Programmable Chip Selects with Integral Wait-State Generator; (9)Memory Refresh Control Unit; (10)Power Management Unit; (11)On-Chip Oscillator; (12)System Level Testing Support (ONCE Mode); (13)Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte I/O; (14)Low-Power Operating Modes; (15)Available in Extended Temperature Range (b40§C to a85§C); (16)Supports 80C187 Numerics Processor Extension (80C186EC only); (17)Package Types:100-Pin EIAJ Quad Flat Pack (QFP), 100-Pin Plastic Quad Flat Pack(PQFP), 100-Pin Shrink Quad Flat Pack(SQFP); (18)Speed Versions Available (5V); (19)Speed Version Available (3V).

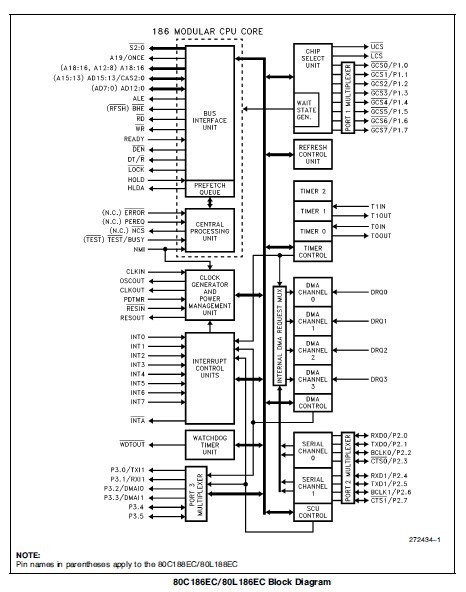

Diagrams
