MAX17113ETL

Product Summary

The MAX17113ETL is a kind of low-cost, multiple-output power supply for LCD TVs. The MAX17113ETL multiple-output power-supply controller generates all the supply rails for thin-film transistor (TFT) liquid-crystal display (LCD) panels in TVs and monitors operating from a regulated 12V input. The MAX17113ETL includes a step-down and a step-up regulator, a positive and a negative charge pump, a Dual Mode logiccontrolled high-voltage switch control block, and an adjustable-timing power-good output. The MAX17113ETL can operate from 8V to 16.5V input voltages and is optimized for LCD TV panel and LCD monitor applications running directly from 12V supplies.

Parametrics

MAX17113ETL absolute maximum ratings: (1)VIN, IN2, EN1, EN2, FSEL to AGND: -0.3V to +24V; (2)CPGND, GND2, PGND to AGND: ±0.3V; (3)MODE, DLP, CTL, THR, DEL1, DEL2, VL, PGOOD to AGND: -0.3V to +7.5V; (4)REF, FBP, FBN, FB1, FB2, COMP, OUT, CRST to AGND: -0.3V to (VVL + 0.3V); (5)LX1, SWI, SWO to AGND: -0.3V to +24V; (6)SWI to SWO: -0.3V to +24V; (7)DRVN to AGND: -0.3V to (VIN2 + 0.3V); (8)DRVP to AGND: -0.3V to (VSWO + 0.3V); (9)LX2 to GND2: -0.3V to (VIN2 + 0.3V); (10)BST to VL: -0.3V to +24V; (11)SRC to AGND: -0.3V to +48V; (12)GON, DRN to AGND: -0.3V to (VSRC + 0.3V); (13)SRC to DRN-0.3V to +40V; (14)DRN to AGND: -0.3V to +40V; (15)GON to DRN: -0.3V to +48V; (16)REF Short Circuit to AGND: Continuous; (17)RMS LX1 Current (total for both pins): 3.2A; (18)RMS PGND Current (total for both pins): 3.2A; (19)RMS IN2 Current (total for both pins): 3.2A; (20)RMS LX2 Current (total for both pins): 3.2A; (21)RMS GND2, CPGND Current: 0.8A; (22)RMS SWI Current: 2.4A; (23)RMS SWO Current: 2.4A; (24)RMS DRVN, DRVP Current: 0.8A; (25)RMS VL Current: 50mA; (26)Continuous Power Dissipation (TA = +70℃) 40-Pin Thin QFN; (27)(derate 35.7mW/℃ above +70℃): 2857.1mW; (28)Operating Temperature Range: -40℃ to +85℃; (29)Junction Temperature: +160℃; (30)Storage Temperature Range: -65℃ to +165℃; (31)Lead Temperature (soldering, 10s): +300℃.

Features

MAX17113ETL features: (1)Optimized for 10.8V to 13.2V Input Supply; (2)8V to 16.5V Input Supply Range; (3)Selectable Frequency (450kHz/600kHz); (4)Current-Mode Step-Up Regulator; (5)Current-Mode Step-Down Regulator; (6)Adjustable Positive and Negative Charge-Pump Regulators; (7)Soft-Start and Timer-Delay Fault Latch for All Outputs; (8)Logic-Controlled High-Voltage Integrated Switches with Adjustable Delay; (9)120mΩ p-Channel FET for AVDD Sequencing; (10)Input Undervoltage Lockout and Thermal-Overload Protection; (11)40-Pin, 5mm x 5mm Thin QFN Package.

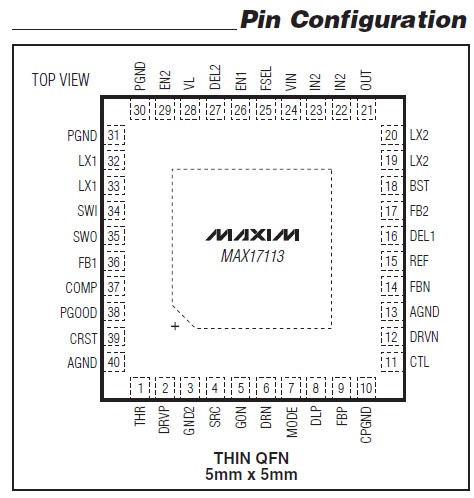

Diagrams
