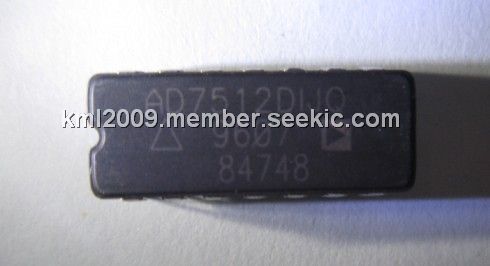

AD7512DIJQ

14CDIP, ±15V, 450mW, protected analog switch, 800μA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.20~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.20~4.00

PartNumber:: AD7512DIJQ

Brand:: Analog Devices - ADI | Pack: CDIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Saintly's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-04

From Other Seller

Part Number:AD7512DIJQ
US $3.20 - 4.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

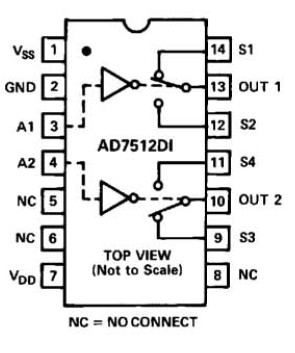

The AD7512DIJQ is a protected analog switch. It features over-voltage protection up to ±25V above the power supplies. The benefits are obtained without sacrificing the low ON resistance or low leakage current, the main features of an analog switch. The AD7512DIJQ consists of four independent SPST analog switched packaged in either a 16-pin DIP or a 20-terminal surface mount package. It differs only in that the digital control logic is inverted. The AD7512DIJQ has two independent SPDI switches packaged either in a 14-pin DIP or a 20-terminal surface mount packzge.

Parametrics

AD7512DIJQ absolute maximum ratings: (1)VDD to GND: +17V; (2)VSS to GND: -17V; (3)Overvoltage at VD(VS)(1 second surge): VDD+25V or VSS-25V; (continuous): VDD+20V or VSS-20V or 20mA, whichever occurs first; (4)Switch current(IDS, continuous): 50mA; (5)Switch current(IDS, surge)1ms duration, 10% duty cycle: 150mA; (6)Digital input voltage range: 0V to VDD +0.3V; (7)Power dissipation(any package)up to +75℃: 450mW; derates above +75℃ by: 6mW/℃; (8)Lead temperature(soldering, 10sec): +300℃; (9)Storage temperature: -65℃ to +150℃; (10)Operating temperature Commercial: 0 to 70℃; industrial: -25℃ to +85℃; extended: -55℃ to +125℃.

Features

AD7512DIJQ features: (1)Latch-proof; (2)Overvoltage-proof: ±25V; (3)Low RON: 75Ω; (4)Low dissipation: 3mW; (5)TTL/CMOS direct interface; (6)Silicon-nitride passivated; (7)Monolithic dielectrically-isolated CMOS; (8)Standard 14-/16-pin DIPs and 20-terminal surface mount packages.
