Product Summary
The AD7581JN is a microprocessor compartible 8 bit, 8 channel, memory buffered, data-acquisition system on a monolithic CMOS chip. The AD7581JN consists of an 8-bit successive approximation A/D converter, an 8 channel multiplexer, 8×8 dual-port RAM, three-state DATA drivers, address latches and microprocessor compatible control logic.
Parametrics
AD7581JN absolute maximum ratings: (1)VDD to AGND: 7V; (2)VDD to DGND: 7V; (3)AGND to DGND: -0.3V, VDD; (4)digital input voltage to DGND: -0.3V, VDD+0.3V; (5)digital output voltage to DGND: -0.3V, VDD+0.3V; (6)VREF to AGND: ±25V; (7)VBOFS to AGND: ±17V; (8)AIN: ±17V; (9)operating tempeature range: 0 to 70℃; (10)storage temperature: 300℃; (11)power dissipation: 1000mW.
Features
AD7581JN features: (1)8 bit resolution; (2)on-chip 8×8 dual-port memory; (3)no missed codes over full temperature range; (4)interfacess directly to Z80/8085/6800; (5)CMOS, TTL compatible digital inputs; (6)three-state data drivers; (7)ratiometric capability; (8)interieaved DMA operation; (9)fast conversion; (10)A/D process totally transparent to μP; (11)low cost.

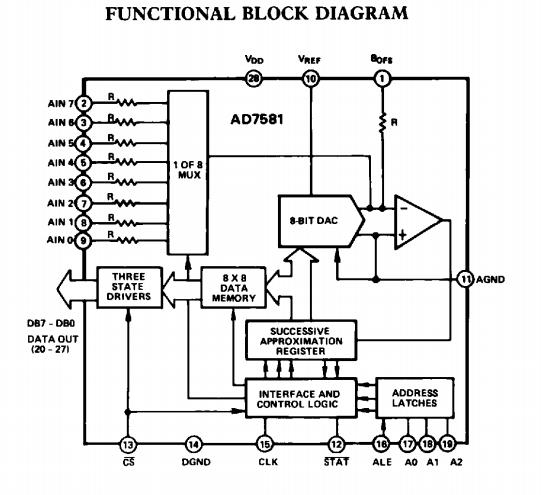

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

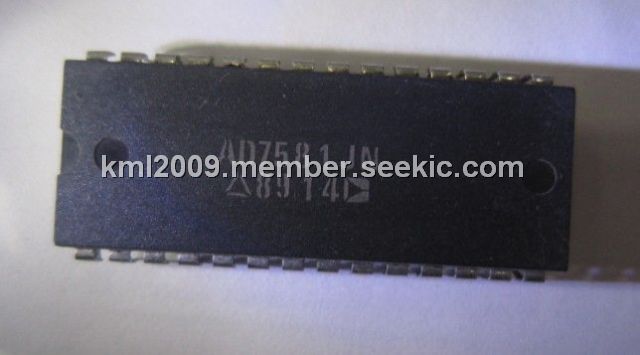

 AD7581JN |
|
IC DAS 8BIT 8CH 5V 28-DIP |
Data Sheet |
|
|
||||||||||||||||
|
AD7581JNZ |
|
IC DAS 8BIT 8CH 5V 28DIP |
Data Sheet |
|
|
||||||||||||||||
