Product Summary

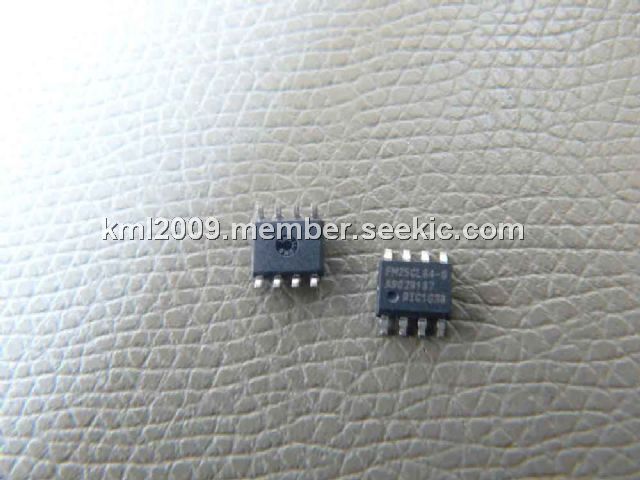

The FM25CL64G is a 64-kilobit nonvolatile memory employing an advanced ferroelectric process. Unlike serial EEPROMs, the FM25CL64G performs write operations at bus speed.It provides substantial benefits to users of serial EEPROM as a hardware drop-in replacement. The device uses the high-speed SPI bus, which enhances the high-speed write capability of FRAM technology.
Parametrics
Absolute maximum ratings: (1)VDD, Power Supply Voltage with respect to VSS: -1.0V to +5.0V; (2)VIN, Voltage on any pin with respect to VSS: -1.0V to +5.0V and VIN < VDD+1.0V; (3)TSTG, Storage Temperature: -55℃ to + 125℃; (4)TLEAD, Lead Temperature (Soldering, 10 seconds): 300℃.
Features
Features: (1)64K bit Ferroelectric Nonvolatile RAM: Organized as 8,192 x 8 bits; Unlimited Read/Write Cycles; 10 Year Data Retention; NoDelay Writes; Advanced High-Reliability Ferroelectric Process; (2)Very Fast Serial Peripheral Interface - SPI: Up to 20 MHz Frequency; Direct Hardware Replacement for EEPROM; SPI Mode 0 & 3 (CPOL, CPHA=0,0 & 1,1); (3)Sophisticated Write Protection Scheme: Hardware Protection; Software Protection; low Power Consumption; Low Voltage Operation 2.7-3.65V; 1 μA Standby Current; (4)Industry Standard Configuration: Industrial Temperature -40℃ to +85℃; 8-pin SOIC.
Diagrams
 |
