Product Summary

The AD830AN is a wideband, differencing amplifier designed for use at video frequencies but also useful in many other applications. The AD830AN accurately amplifies a fully differential signal at the input and produces an output voltage referred to a user-chosen level. The applications of the AD830AN are Differential Line Receiver, High Speed Level Shifter, High Speed In-Amp, Differential to Single Ended Conversion, Resistorless Summation and Subtraction, High Speed A/D Driver.

Parametrics

AD830AN absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Internal Power Dissipation:Observe Derating Curves; (3)Output Short Circuit Duration:Observe Derating Curves; (4)Common-Mode Input Voltage:±VS; (5)Differential Input Voltage:±VS; (6)Storage Temperature Range:–65 to +125℃; (7)Operating Temperature Range:–40 to +85℃; (8)Lead Temperature Range (Soldering 60 seconds):+300℃.

Features

AD830AN features: (1)Wide Common-Mode Voltage Range: +12.8 V, –12 V; (2)Differential Voltage Range: ±2 V; (3)High CMRR: 60 dB @ 4 MHz; (4)Built-in Differential Clipping Level: ±2.3 V; (5)85 MHz Unity Gain Bandwidth; (6)35 ns Settling Time to 0.1%; (7)360 V/us Slew Rate; (8)Symmetrical Dynamic Response; (9)Excellent Video Specifications; (10)Differential Gain Error: 0.06%; (11)Differential Phase Error: 0.08°; (12)15 MHz (0.1 dB) Bandwidth; (13)Flexible Operation; (14)High Output Drive of ±50 mA min; (15)Specified with Both ±5 V and ±15 V Supplies; (16)Low Distortion: THD = -72 dB @ 4 MHz; (17)Excellent DC Performance: 3 mV max Input Offset Voltage.

Diagrams

AD830AN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

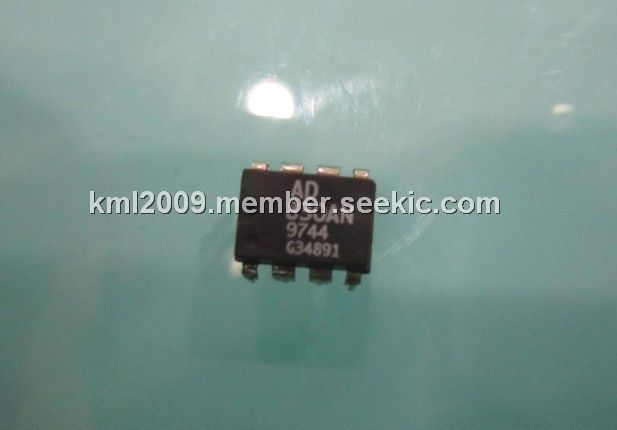

AD830AN
AD830AN
Analog Devices Inc
IC VIDEO DIFF AMP HS 8-DIP
Data Sheet
1-50: $3.05
AD830ANZ
AD830ANZ

IC VIDEO DIFF AMP HS 8-DIP
Data Sheet
0-1: $4.10
1-10: $3.69
10-25: $3.37
25-100: $3.04
100-250: $2.79
250-500: $2.54
500-1000: $2.22
1000-2500: $2.19
