Product Summary

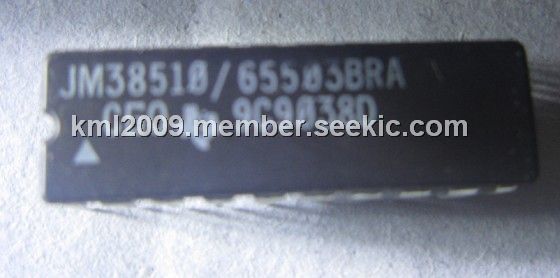

The JM38510/65503BRA octal bus transceiver is designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The JM38510/65503BRA allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input.
Parametrics
JM38510/65503BRA absolute maximum ratings: (1)Supply voltage range, VCC:-0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC):±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC):±20 mA; (4)Continuous output current, IO (VO = 0 to VCC):±35 mA; (5)Continuous current through VCC or GND:±70 mA; (6)Storage temperature range, Tstg:-65 to 150℃.
Features
JM38510/65503BRA features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)High-Current 3-State Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 12 ns; (5)±6-mA Output Drive at 5 V; (6) Low Input Current of 1 μA Max.
