Product Summary

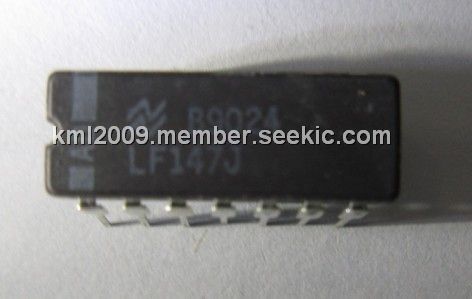

The LF147J is a low cost, high speed quad JFET input operational amplifier with an internally trimmed input offset voltage (BI-FET II[TM] technology). The device requires a low supply current and yet maintains a large gain bandwidth product and a fast slew rate. In addition, well matched high voltage JFET input device provides very low input bias and offset currents. The LF147J is pin compatible with the standard LM148. This feature allows designers to immediately upgrade the overall performance of existing LF148 and LM124 designs. The LF147J may be used in applications such as high speed integrators, fast D/A converters, sample-and-hold circuits and many other circuits requiring low input bias current, high input impedance, high slew rate and wide bandwidth. The LF147J has low noise and offset voltage drift.
Parametrics
LF147J absolute maxing ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±38V; (3)Input Voltage Range: ±19V; (4)Output Short Circuit Duration: Continuous; (5)Power Dissipation: 900mW; (6)Tj max: 150℃; (7)θjA Ceramic DIP (J) Package: 70℃/W; Plastic DIP (N) Package: 75℃/W; Surface Mount Narrow (M): 100℃/W; (8)Surface Mount Wide (WM): 85℃/W; (9)Storage Temperature Range: -65℃≤TA≤150℃; (10)Lead Temperature(Soldering, 10 sec.): 260℃; (11)Soldering Information Dual-In-Line Package Soldering (10 seconds): 260℃; (12)Small Outline Package Vapor Phase (60 seconds): 215℃; Infrared (15 seconds) 220℃.
Features
LF147J features: (1)Internally trimmed offset voltage: 5mV max; (2)Low input bias current: 50pA; (3)Low input noise current: 0.01pA√Hz￣ ; (4)Wide gain bandwidth: 4MHz; (5)High slew rate: 13V√μs￣ ; (6)Low supply current: 7.2mA; (7)High input impedance: 1000000000000Ω; (8)Low total harmonic distortion AV=10,: <0.02%, RL=10k, VO=20 Vp-p, BW=20 Hz-20 kHz; (9)Low 1/f noise corner: 50Hz; (10)Fast settling time to 0.01%: 2μs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LF147J |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
LF14-6L |
3M Electronic Specialty |
Terminals LF14-6L 50/BAG SS-32-6 97781 |
Data Sheet |
Negotiable |
|
||||||||||||
|
LF147 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
LF147J |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LF14-8L |
3M Electronic Specialty |
Terminals LF14-8L 50/BAG SS-32-8 97799 |
Data Sheet |
Negotiable |
|
||||||||||||
