Product Summary

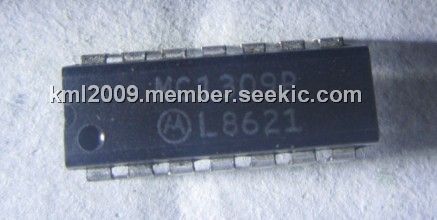

The MC1309P is a phase lock loop FM stereo demodulator using I2L and ION implant technology for use in solid-state stereo receivers.
Parametrics
MC1309P absolute maximum ratings: (1)power supply voltage:16V; (2)lamp current:50mA; (3)junction temperature:150℃; (4)operating temperature range:-20 to 75℃; (5)storage temperature range:-65 to 150℃.
Features
MC1309P features: (1)requires No inductors; (2)low external part count; (3)excellent channel separation withous adjustment; (4)only single potentiometer oscillator frequency adjustment necessary; (5)50mA lamp or LED driving capability with current limiting; (6)automatic, transient-free stereo/mono switching; (7)wide dynamic range:0.25 to 1.7V composite input signal; (8)wide supply range:4.5V to 16V; (9)excellent SCA rejection; (10)gain adjustable by changing load resistors.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC1309P |
Other |
|
Data Sheet |
Negotiable |
|
||||
