Product Summary

The REF02EZ is a precision voltage reference that is pretrimmed to within ±3% of +10V and +5V, respectively. It features excellent temperature stability (as low as 8.5 ppm/°C worst case), low current drain, and low noise. The REF02EZ also provides a TEMP pin whose output voltage varies linearly with temperature, making this device suitable for a wide variety of temperature-sensing and control applications. Both devices are available from Maxim in the space-saving SO package, as well as in the standard 8-pin TO-99 and MINI-DIP packages. The applications of REF02EZ include A to D converters,D to A converters,digital voltmeters,voltage regulators and threshold detectors.

Parametrics

REF02EZ absolute maximum ratings:(1)Power Dissipation:T099 (J) (derate at 7.1mW℃ above 80℃),500mW;CERDIP (derate at 6.7mW/℃ above 75℃),500mW;Plastic Dip (P) (derate at 5.6mW/℃ above 36℃),500mW;Small Outline (S) (derate at 5.0mW/℃ above 55℃),300mW; (2)Output Short-Circuit Duration(to ground or VIN):Indefinite; (3)Storage Temperature Range:-65℃ to +150℃; (4)dice junction temperature (Tj): -65℃ to +150℃; (5)lead temperature (soldering, 60s):+300℃.

Features

REF02EZ features: (1)pretrimmed to +5V, +10V ±0.3%; (2)excellent temperature stability: 3ppm/℃; (3)low noise: 10μVp-p (REF02); (4)low supply current: 1.4mA max; (5)short-circuit proof; (6)linear temperature transducer O/P (REF02).

Diagrams

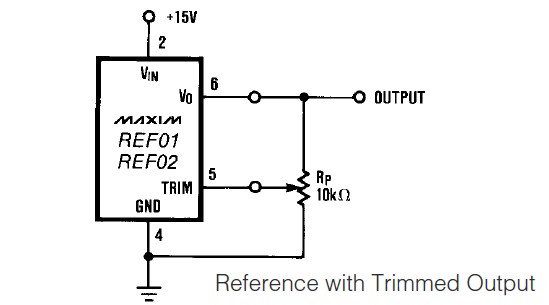

REF02EZ circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
REF02EZ
REF02EZ

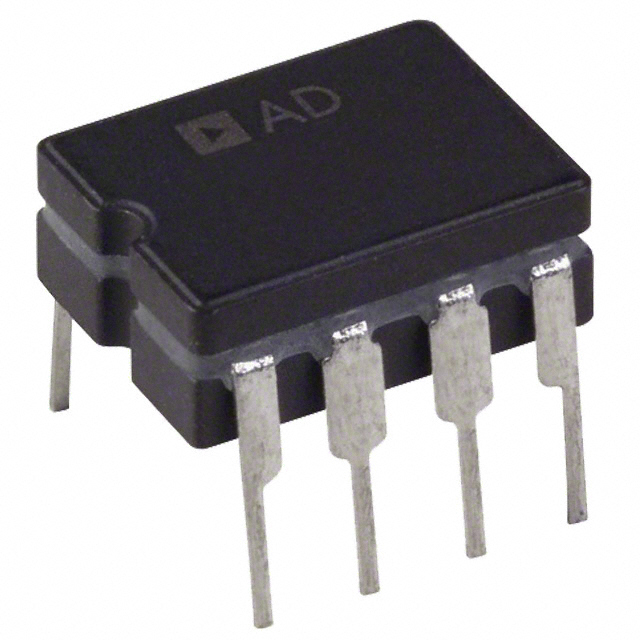

IC VREF SERIES PREC 5V 8-CERDIP
