Product Summary
The REF03G is a precision voltage reference which provides a stable 2.5 V output, with minimal change for variations in supply voltage, ambient temperature, or loading conditions. Single-supply operation over an input voltage range of 4.5 V to 33 V with a current drain of 1 mA and good temperature stability is achieved using an improved band gap design. Primarily targeted at price sensitive applications, the REF03 is available in plastic mini DIPs and surface-mount small outline plastic packages. For improved performance or -40℃ to +125℃ operation, see the ADR03 data sheet.
Parametrics
REF03G absolute maximum ratings: (1)input voltage: 40V; (2)output short-circuit duration: indefinite; (3)operating temperature range,REF03G (P, S):-40℃ to +85℃; (4)storage temperature range:-65℃ to +175℃; (5)junction temperature range:-65℃ to +175℃; (6)lead temperature (soldering, 10 sec):300℃.
Features
REF03G features: (1)2.5 voltage output, ±0.6% max; (2)wide input voltage range, 4.5 V to 33 V; (3)supply current 1.4 mA max; (4)output voltage tempco, 50 ppm/℃ max; (5)line regulation, 50 ppm/V max; (6)load regulation, 100 ppm/mA max; (7)extended industrial temperature range, -40℃ to +85℃; (8)low cost.

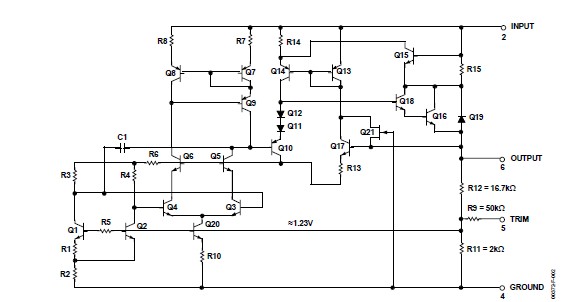

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 REF03GP |
Analog Devices Inc |
IC VOLT REFERENCE PREC 2.5V 8DIP |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
REF03GS |
Analog Devices Inc |
IC VOLT REFERENC PREC 2.5V 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
REF03GS-REEL |
Analog Devices Inc |
IC PREC VOLT REF 2.5V 8SOIC TR |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
REF03GSZ-REEL7 |
|
IC VREF SERIES PREC 2.5V 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
REF03GSZ-REEL |
|
IC VREF SERIES PREC 2.5V 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
REF03GSZ |
|
IC VREF SERIES PREC 2.5V 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
REF03GS-REEL7 |
Analog Devices Inc |
IC PREC VOLT REF 2.5V 8SOIC TR |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
REF03GPZ |
|
IC VREF SERIES PREC 2.5V 8-PDIP |
Data Sheet |
|
|
||||||||||||||||||||
