Product Summary

The AD7541ABQ is a low cost, high performance 12-bit monolithic multiplying digital-to-analog converter. The AD7541ABQ is fabricated using advanced, low noise, thin film on CMOS technology and is available in a standard 18-lead DIP and in 20-terminal surface mount packages. The AD7541ABQ is functionally and pin compatible with the industry standard AD7541 device and offers improved specifications and performance.

Parametrics

AD7541ABQ absolute maximum ratings: (1)VDD to GND:+17 V; (2)VREF to GND:±25 V; (3)VRFB to GND:±25 V; (4)Digital Input Voltage to GND:–0.3 V, VDD + 0.3 V; (5)OUT 1, OUT 2 to GND:–0.3 V, VDD + 0.3 V; (6)Power Dissipation (Any Package): To +75℃:450 mW, Derates above +75℃:6 mW/℃; (7)Operating Temperature Range:0℃ to +70℃; (8)Storage Temperature:–65℃ to +150℃; (9)Lead Temperature (Soldering, 10 secs):+300℃.

Features

AD7541ABQ features: (1)Improved Version of AD7541; (2)Full Four-Quadrant Multiplication; (3)12-Bit Linearity (Endpoint); (4)All Parts Guaranteed Monotonic; (5)TTL/CMOS Compatible; (6)Low Cost; (7)Protection Schottky Diodes Not Required; (8)Low Logic Input Leakage.

Diagrams

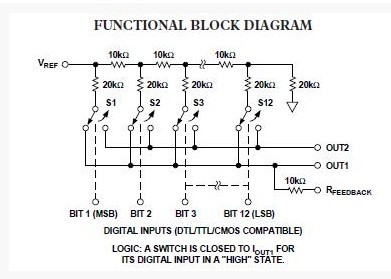

AD7541ABQ functional blcok diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

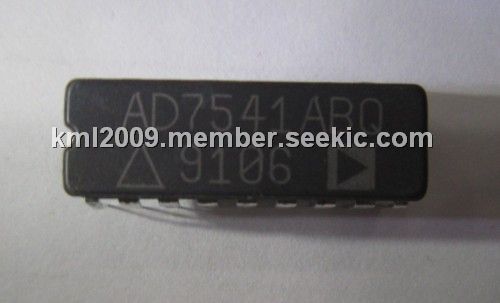

AD7541ABQ
AD7541ABQ


IC DAC 12BIT MULT MONO 18-CDIP

Data Sheet

0-21: $10.48
